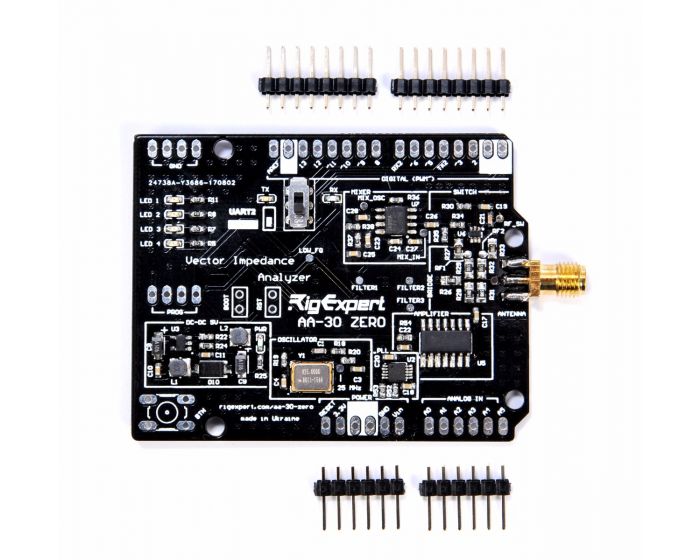

RigExpert AA-30.ZERO
It is a standard AA-30 analyzer but without enclosure, LCD display and keypad.
But .ZERO even more powerful than the old good AA-30.

Why is that ?
Creating AA-30.ZERO we met the numerous wishes of radio amateurs and DIY-hobbyists to give them a measuring tool that can be easily integrated into their own projects.

Are .ZERO ready for use?

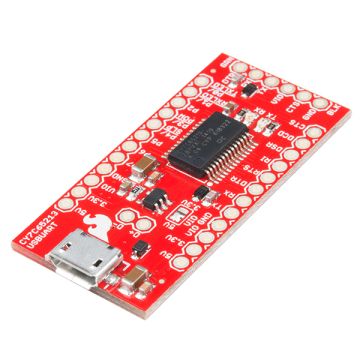

Yes, it has everything necessary on board, so user can connect .ZERO to the PC (through USB-to-RS232 adaptor) and perform all the usual set of laboratory measurements. .ZERO perfectly works with our AntScope software.

Want to DIY ?
Experienced user can pair .ZERO with the Arduino board making his own hardware/software project. Because .ZERO is compatible with Arduino standard. Also we have already prepared examples of running .ZERO in the DIY projects. Want to make your own automatic antenna tuner ? Use .ZERO! Want to perform RF-circuits or antenna analysis remotely ? Pair .ZERO with the ESP8266 Wi-Fi SoM and do it! Want to tune your antenna with driven elements sharply ? Use .ZERO to fine tuning.

Price & Power
It is not possible to find such an accurate and powerful analyzer at this price! The dreams of radio amateurs will come true with this cheap and reliable device!

For more detailed information and project ideas involving the RigExpert AA-30.Zero, click HERE.

Frequency range: 0.06 to 30 MHz
Frequency entry: 1 Hz resolution
Measurement for 25, 50, 75 and 100-Ohm systems

Housing: none
Display: 4 LED
Power supply: external
Communication interface: UART

SWR measurement range: 1 to 100 in numerical mode,
R and X range: 0…10000, -10000…10000 in numerical mode,
RF output
• Connector type: SMA, included, not mounted
• Output signal shape: square, 0.06 to 30 MHz
• Output power: +13 dBm (at 50 Ohm load)

Power
• Supply: External 5V
• Current consumption (max) 150 mA

General data
Dimensions (W x H x D) 55 mm x 69 mm x 5 mm (PCB only w/o connectors)
(2.1 in x 2.7 in x 0.2 in)
Weight 310 g (10.9 Oz) w/o connectors
Operating temperature 0…40 °C (32…104 °F)

NOTE: Specifications are subject to change without notice
