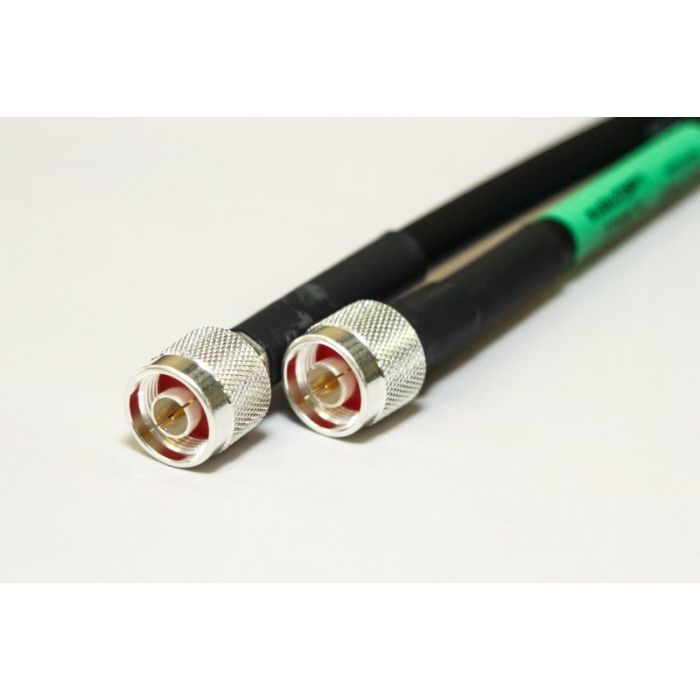

ABR400 Low Loss cable N Male on both ends, 100ft

ABR400 Low Loss cable N Male on both ends, 100ft

Find all of your PolyPhaser lightning surge protectors here!

24400-FR Low Loss RF Cable

Low Smoke Zero Halogen

ABR#: 24400-FR (Low Smoke Zero Halogen) is a low loss high-performance cable in the RG8 category. As an alternative to CommScope® WBC-400, Andrew® CNT-400 coax cable, Belden® 9913, TerraWave TWS-400 and Times Microwave Systems® 400-Type.

•Solid BCCA Center Conductor.

•Low Loss

•95% TC Braid + 100% Foil Shield

•Same size as RG8 .400″

•The shield, a foil+braid combination is 50 dB greater than typical single shielded coax (40 dB).  and is typically at > 90 dB (i.e. >180 dB between two adjacent cables).

•A wide array of connector choices are stocked.

•WLL, GPS, LMR, WLAN, WISP, WiMax, SCADA, Mobile Antennas.

Nominal Attenuation/per 100ft

•0.7dB @ 30MHz 3.33kW. 85.6% E.

•0.9dB @ 50MHz 2.57kW 81.7% E.

•1.5dB @ 150MHz 1.47kW 70.2% E.

•2.7dB @ 450MHz 0.83kW 53.6% E.

•3.9dB @ 900MHz 0.58kW 40.7% E.

•VP: 84%, RoHS Compliant.
