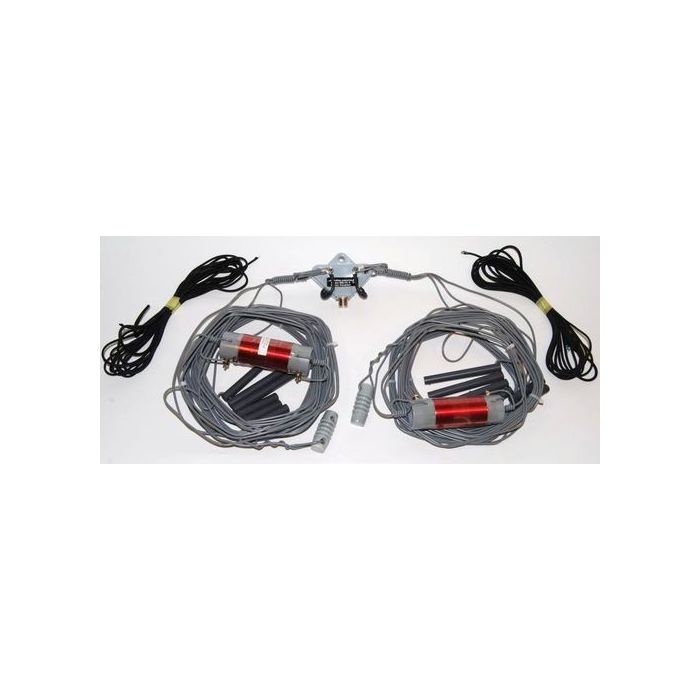

ALPHA DELTA DX-80

The Alpha Delta DX-80 is a high-performance, full-size monoband dipole designed specifically for the 80-meter band. Pre-assembled and built to withstand the elements, this antenna offers a reliable solution for amateur radio operators looking for efficient low-band performance without the hassle of starting from scratch.

Reliable Construction & Design
The Alpha Delta DX-80 is engineered with 12-gauge PVC-insulated, high-strength solid copper wire for maximum durability and conductivity. It features the specialized Delta-C Center Insulator, which includes a built-in SEP static electricity protector to help safeguard your equipment from static buildup. The assembly is rounded out with rugged DELTA-CIN end insulators and stainless steel hardware to ensure a long service life in various weather conditions.

Simple Installation and Tuning
While the DX-80 comes pre-assembled and resonant for the 80-meter band, it is designed with flexibility in mind. If you need to operate on a different portion of the band or even move to the 60-meter band, the wire lengths can be easily adjusted and shortened according to the provided instructions. Its simple SO-239 (UHF female) connection makes it compatible with standard PL-259 coaxial cables.

Key Features

• Full Legal Power: Built to handle up to 2,000 watts PEP.
• Static Protection: Features the Alpha Delta SEP Static Electricity Protector.
• Adjustable Tuning: Pre-tuned for 80m but easily modified for specific frequency ranges.
• Ready to Hang: Includes the necessary mounting rope for a quick setup.

Specifications

• Antenna Band: 80 Meters
• Frequency Coverage: 3.5 MHz (Adjustable)
• Power Rating: 2,000 Watts PEP
• Total Length: 134 ft.
• Wire Material: 12-Gauge PVC-Insulated Solid Copper
• Center Insulator: Delta-C with SO-239 Connector
• Hardware: Stainless Steel
• Weight: Approx. 4.1 lbs
• Recommended Feedpoint Height: 35 ft. or higher for best performance
