Ameritron AL-1500Q

$4,095.00
Ameritron AL-1500Q SKU: ZAM-AL-1500Q

$4,095.00

Free Shipping!

Reserve yours now!
(Ships In 30+ Days)

Check Store Stock

Huntsville Store:

Las Vegas:

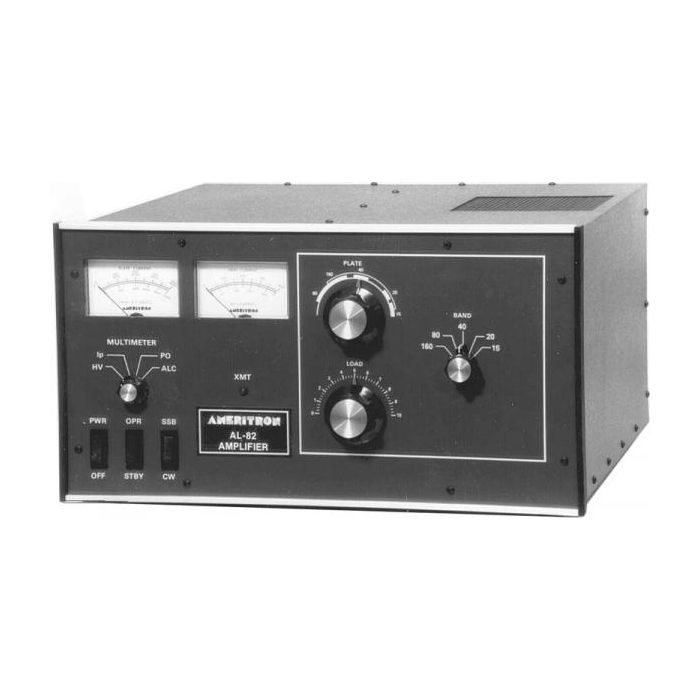

1.5 KW Output Linear Amplifier with T/R QSK Switch

  • Includes time delay starting and over-current protection.
  • Utilizes a commercial grade die-cast ball bearing blower
  • SO-239 Connectors
  • NEMA 6-15P 240V Style Line Connectors
  • Dimensions: 18.5" D x 17" W x 10" H
  • Weight: 77lbs
  • Coverage: 160m, 80m, 40m, 20m, and WARC
Specifications:

Input:

  • Circuit type: Pi-network, slug tuned coils.
  • Maximum VSWR at resonance: 1.3:1.
  • Minimum 2:1 VSWR bandwidth: 20% of center frequency
  • Maximum drive power permissible: 100 Watts
  • Typical drive for full power output: 65 watts
Output:

  • Circuit type: Pi-L/Pi network
  • 1/2 hour continuous carrier: 1500 watts
  • 30 second continuous carrier: 2500 watts
  • 1/2 hour PEP two-tone test: 2500 watts plus
  • 30 second PEP two-tone test: 2500 watts plus
Power Supply:

  • Circuit type: Full wave bridge, capacitor input
  • No Load voltage: 3600V
  • Full load voltage: 3300V
  • Full load current: 1 amp
  • Regulation: 10% typical
  • Transformer: 34lb., Hypersil
  • Capacitors: 26mFd total, computer grade
  • Maximum draw at rated output: 15 amps at 240 VAC
Tube:

  • Type: Eimac 3CX1500/8877
  • Continuous dissipation: 1500W
  • Warm-up time: 180 seconds
Metering:

  • Multimeter: Plate current, plate voltage, drive/ALC, power output (PEP watts)
