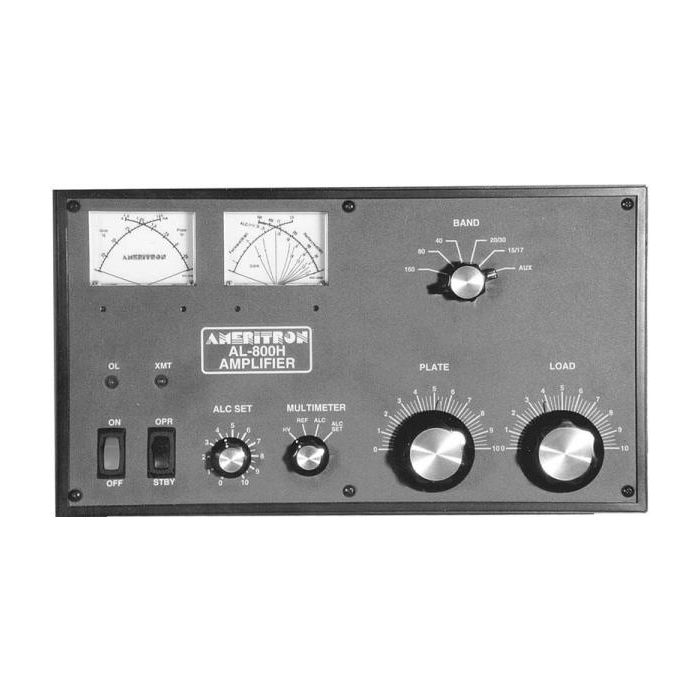

Ameritron AL-800H

$3,419.00
Ameritron AL-800H SKU: ZAM-AL-800H

$3,419.00

Free Shipping!

Reserve yours now!
(Ships In 30+ Days)

Check Store Stock

Huntsville Store:

Las Vegas:

1.5KW Output Linear Amplifier

General Specifications:


  • Output Power: 1500+ Watts PEP
  • All band operation: 160-15 inc WARC. User modifiable for 12 and 10 meters.
  • Genuine Eimac tubes: Contains two Eimac 3CX800A7s
  • Tuned input circuit: Adjustable slug tuned input circuit.
  • Output Network: Pi/Pi-L gives you smooth tuning and wide matching range.
  • Tube protection: Grid current limiting circuit protects your tubes.
  • ALC Control: Front panel adjustable, true ALC control.
  • Vernier Reduction Drives: Tuning and loading reduction drives make adjustments smooth and easy.
  • Heavy duty power supply: Uses 32 lb. grain orientated silicone steel core transformer and high capacitance computer grade filter capacitors.
  • Multi-voltage operation: 14 selectable AC input sets from 90 - 140, 200-250 VAC.
  • Air Cooled: Quiet pressurized ventilation keeps tubes safely cooled.
  • Dual illuminated cross-needle meters:Two cross-needle meters that read peak forward power, reflected power, SWR, high voltage, grid current and plate current.
  • Step-Start Inrush Protection: Stop damage to your amplifier from inrush current.
