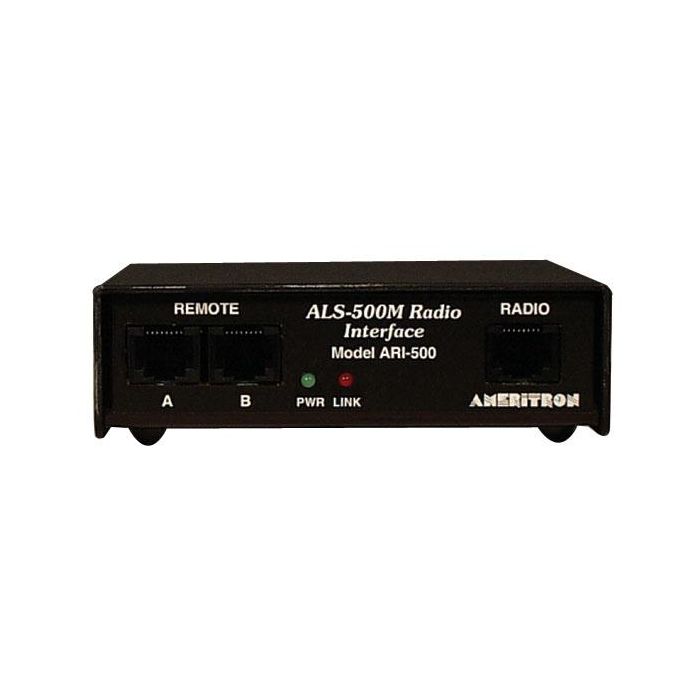

RADIO INTERFACE FOR ALS-500M
The Ameritron ARI-500 Amplifier Radio Interface reads band data from your Icom, Yaesu, Kenwood or Alinco transceiver so they can remotely and automatically bandswitch your ALS-500M amp. Lets you mount your ALS-500M out-of-the-way in your trunk.
NOTE: Works with serial numbers above 13049.
These cables connect the ARI-500 the following Transceivers.
| ARI-500 Cables | |
|---|---|
| Model # | Transceiver |
| RJ-13D | Icom 706, 7000, 718, 7300 |
| RJ-7DI | Icom ACC2, 7 pin |
| RJ-DB97DK | TS-2000, 570, TS-590S, 870 |
| RJ-DB98MK | Kenwood and compatibles* |
| RJ-DB9Y | FT-847 CAT |
| RJ-8MY | FT-847 Tuner Port, 450/95 |
| RJ-8MY2 |
FT-857D, 897D, 991A |
| RJ-13D |
IC-7300 |
| RJ-8DY | FT-1000MP |

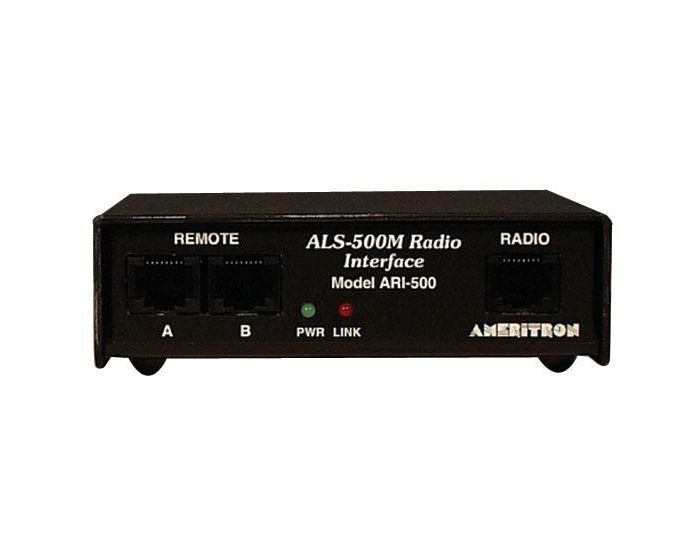

Please see image 2 above for more info on Yaesu radio compatibility.
NOTE: FT-991A menu 143 with the old software, and 141 with the current software updates, set to LAMP to get it to work with the ARI-500, ALS-1306, ALS-606, and the RCS-12
