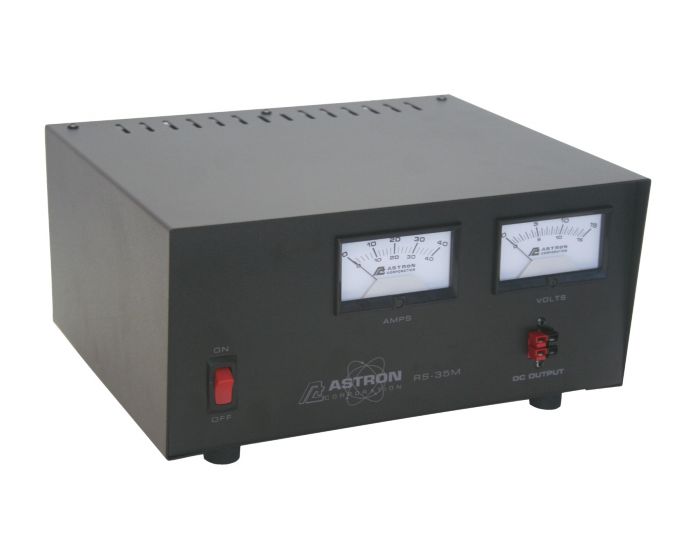

Astron Linear Power Supply with Meters and Power Poles - RS-35M-AP

• SOLID STATE ELECTRONICALLY REGULATED

• FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output

• CROWBAR OVER VOLTAGE PROTECTION ON ALL MODELS

• MAINTAIN REGULATION AND LOW RIPPLE at low line input Voltage

• THREE CONDUCTOR POWER CORD

• HEAVY DUTY HEAT SINK

• INPUT VOLTAGE: 105-125VAC

• OUTPUT VOLTAGE: 13.8VDC ±0.05 volts​

• INTERNALLY ADJUSTABLE VOLTAGE (11-15VDC)

• RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)

• LOAD REGULATION: 0.08% from 0 to Full Continuous Load​​

• EFFICIENCY: 77%

• OPERATING TEMP: -10 to 55°C

• ANDERSON POWER POLES INSTALLED IN -AP MODELS

• CONTINUOUS DUTY: 25 Amps

• ICS*: 35 Amps

• DIMENSIONS: 5 x 11 x 11"

• SHIPPING WEIGHT: 27 lbs

• FUSE: AGC 8A

• POWER TERMINALS:

  • 1/4"-20 Screw Type

• AC CURRENT DRAW

IDLE: 230mA

FULL LOAD: 5.7A

• FAN COOLED: No

• LED BACKLIT VOLT AND AMP METERS
