Bioenno Power 12V 30Ah LFP LiFePO4 Battery - 30A Max
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1230AS is a state of the art 12V 30Ah battery. Ideal for hard use, this ABS version is well suited for not only stationary installations but also motors and vehicles covering e-bike to e-scooter, high power consumption radio communications and audio-visual applications among the many compatible applications. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 6A with Alligator Clips. Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.
Before discharge confirm terminal screws are wrench-tightened to ensure proper contact is made!
BLF-1230AS Battery Specifications
- Voltage: 12V
- Capacity: 30Ah
- Case Type: ABS Sealed
- Charge/Discharge Connector: Screw Terminal
- Maximum Continuous Discharge Current: 30A
- Maximum Peak Discharge Current: 60A (5 sec)
- Maximum Continuous Power: 360 Watts (12V x 30A = 360 Watts) (Make sure your load consumes less than 360 Watts)
- Dimensions:(L x W x H) 8.8 in. x 3.7 in. x 9 in. (223 mm x 95 mm x 175 mm)
- Weight: 8.6 lbs. (3.9 kg.)
- Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
- Available 120VAC/220 VAC Charger

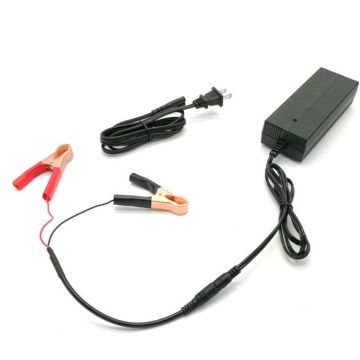

Compatible AC-to-DC Charger Specifications
- Input Voltage: 120VAC/220 VAC
- Output Voltage: 14.6VDC
- Current: 6A
- Connector: Alligator Clips
- Model Number: BPC-1506C
BLF-1230AS Battery Specifications
- Voltage: 12V
- Capacity: 30Ah
- Case Type: ABS Sealed
- Charge/Discharge Connector: Screw Terminal
- Maximum Continuous Discharge Current: 30A
- Maximum Peak Discharge Current: 60A (5 sec)
- Maximum Continuous Power: 360 Watts (12V x 30A = 360 Watts) (Make sure your load consumes less than 360 Watts)
- Dimensions:(L x W x H) 8.8 in. x 3.7 in. x 9 in. (223 mm x 95 mm x 175 mm)
- Weight: 8.6 lbs. (3.9 kg.)
- Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
- Available 120VAC/220 VAC Charger
Compatible AC-to-DC Charger SpecificationsÂ
- Input Voltage: 120VAC/220 VAC
- Output Voltage: 14.6VDC
- Current: 6A
- Connector: Alligator Clips
- Model Number: BPC-1506C
