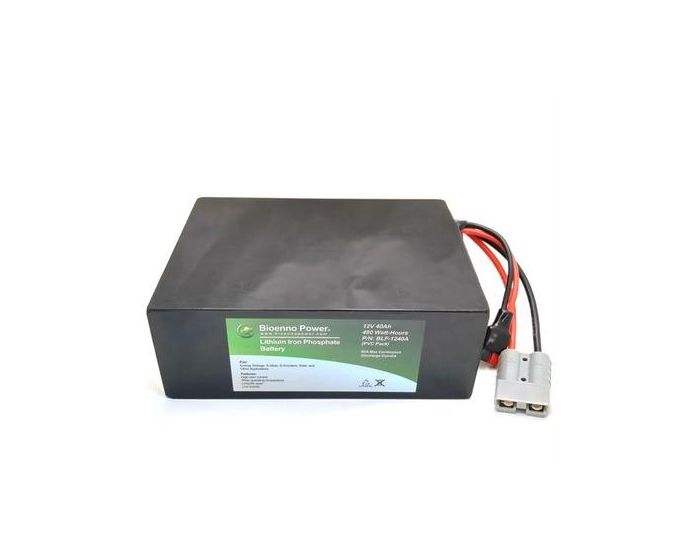

Bioenno Power 12V 40Ah LFP LiFePO4 Battery - 40A Max
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1240A is a state-of-the-art 12V 40Ah battery. The BLF-1240A is a staple of Bioenno Power's high-power 12V battery line designed for more stationary applications and higher power consumption portable electronics requiring a higher capacity and greater power output battery while demanding a battery which can reliably provide excellent performance over an extended service life. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has an available 110VAC/220 VAC AC-to-DC charger, that provides 6A, with a Powerpole connector. Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.
Model BLF-1240A Battery Specifications
- Voltage: 12V
- Capacity: 40Ah
- Case Type: PVC Pack
- Charge/Discharge Connector: Anderson Powerpole
- Maximum Continuous Discharge Current: 40A
- Maximum Peak Discharge Current: 80A (5 sec)
- Max Power Delivered to Load @ 12V: 480 Watts (12V x 40A = 480 Watts)
- Dimensions:(L x W x H) 8.4 in. x 6.3 in. x 3.2 in. (213 mm x 159 mm x 80)
- Weight: 10.4 lbs. (4.7 kg.)
- Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
- Available 110VAC / 220 VAC Charger
Compatible AC-to-DC Charger Specifications
- Input Voltage: 110VAC/120VAC
- Output Voltage: 14.6VDC
- Current: 6A
- Connector: Anderson Powerpole
- Model Number: BPC-1506A
Model BLF-1240A Battery Specifications
- Voltage: 12V
- Capacity: 40Ah
- Case Type: PVC Pack
- Charge/Discharge Connector: Anderson Powerpole
- Maximum Continuous Discharge Current: 40A
- Maximum Peak Discharge Current: 80A (5 sec)
- Max Power Delivered to Load @ 12V: 480 Watts (12V x 40A = 480 Watts)
- Dimensions:(L x W x H) 8.4 in. x 6.3 in. x 3.2 in. (213 mm x 159 mm x 80)
- Weight: 10.4 lbs. (4.7 kg.)
- Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry
- Available 110VAC / 220 VAC Charger
Compatible AC-to-DC Charger SpecificationsÂ
- Input Voltage: 110VAC/120VAC
- Output Voltage: 14.6VDC
- Current: 6A
- Connector: Anderson Powerpole
- Model Number: BPC-1506A
