Bioenno Power Lithium Iron Phosphate LiFePO4 Battery BLF-1212AS
AS is our latest model, and it is next generation of our WS and T models.
The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1212AS is a state-of-the-art 12V 12Ah battery. Electrically identical to our popular BLF-1212A, this AS ABS Sealed variant is the drop-in solution for your system and applications and offers the proven world-class performance of a Bioenno Power battery in a form factor you are familiar with. Ideal for hard use, this ABS version has seen extensive use powering critical avionics on sail planes with additional applications covering e-bike, e-scooter, radio communications and audio-visual. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has an available 110VAC/220 VAC AC-to-DC charger, that provides 2A with Alligator Clips.
Please note that this battery should be charged using a LiFePO4 compatible charger, and not a charger for SLA batteries.
BLF-1212AS Battery Specifications
- Voltage: 12V
- Capacity: 12 Ah
- Case Type: ABS Sealed
- Charge/Discharge Connector: Fast-On
- Maximum Continuous Discharge Current: 20A
- Maximum Peak Discharge Current: 40A (2 sec.)
- Max Power Delivered to Load at 12V: 240 Watts (12V x 20A = 240 Watts)
- Dimensions: 6.0 in. x 3.9 in. x 3.8 in. (152 mm x 100 mm x 95 mm)
- Weight: 3.6 lbs. (1.6 kg)
Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry Available 120VAC/220 VAC Charger Please note you can also use an adapter to convert the output connector from the battery to various outputs including a DC plug.

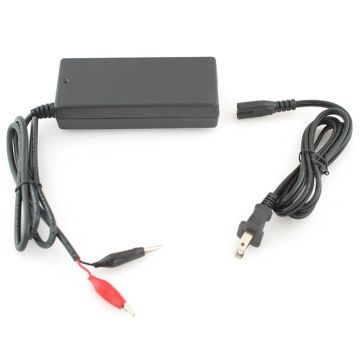

Compatible AC-to-DC Charger Specifications
- Input Voltage: 120VAC/220 VAC
- Output Voltage: 14.6VDC
- Current: 2A
- Connector: Alligator Clips
- Model Number: BPC-1502C
