Bioenno Power LiFePO4 Battery BLF-1220A

Bioenno Power LiFePO4 Battery BLF-1220A  SKU: ZBP-BLF-1220A


Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

Bioenno Power Lithium Iron Phosphate LiFePO4 Battery BLF-1220A

The Bioenno Power Lithium Iron Phosphate (LiFePO4) Battery Model BLF-1220A is a state-of-the-art 12V 20Ah battery. The BLF-1220A is the entry level unit of Bioenno Power's high-power 12V battery line designed for more stationary applications and higher power consumption portable electronics requiring a higher capacity and greater power output battery while demanding a battery which can reliably provide excellent performance over an extended service life. The battery has an integrated PCM (protection circuit module) which provides complete internal cell balancing, complete integrated protection along with integrated charge circuitry and boasts no EMI/RFI (Electromagnetic Interference/Radio-Frequency Interference) and is absolutely quiet! This unit has available a 110VAC/220 VAC AC-to-DC charger, that provides 4A, with a DC Plug.

Please note that this battery should be charged using a LiFePO4 compatible charger, and not with a charger for SLA batteries.

Model BLF-1220A Battery Specifications

  • Voltage: 12V
  • Capacity: 20Ah
  • Case Type: PVC Pack
  • Charge Connector: DC Plug
  • Discharge Connector: Anderson Powerpole
  • Maximum Continuous Discharge Current: 40A (make sure your electrical load consumes less than 40A)
  • Maximum Power Delivered to Load at 12V: 480 Watts (12V x 40A = 480 Watts)
  • Maximum Peak Discharge Current: 60A (3 sec)
  • Dimensions: 6.5 in. x 4.31 in. x 3.3 in. (160 mm x 108 mm x 83 mm)
  • Weight: 5.4 lbs. (2.4 kg.)

Includes built-in PCM (protection circuit module) which provides internal cell balancing and management, protection from overcurrent, undervoltage (overdischarge), overvoltage and short circuiting, and has integrated charging circuitry Available 110VAC / 220 VAC Charger

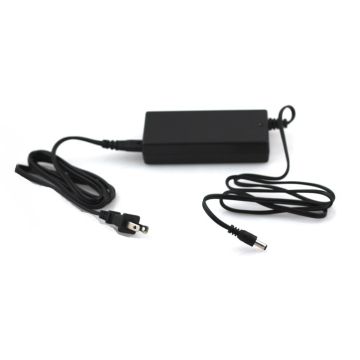

Compatible AC-to-DC Charger Specifications

  • Input Voltage: 110VAC/120VAC
  • Output Voltage: 14.6VDC
  • Current: 4A
  • Connector: DC Plug
  • Model Number: BPC-1504DC
