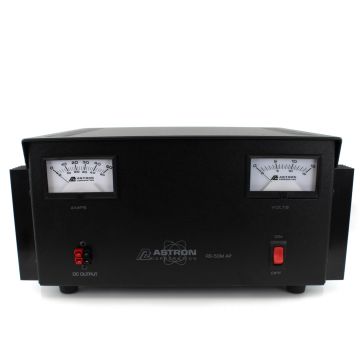

Blemished Astron RS-50M-AP Power Supply SN138460

No free freight
SKU
ZUS-5523
$359.95
Add to Wish List

Sold Out!

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Blemished Astron RS-50M-AP Power Supply SN138460. Box damaged in shipping to GigaParts.

  • SOLID STATE ELECTRONICALLY REGULATED
  • FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output

  • CROWBAR OVER VOLTAGE PROTECTION ON ALL MODELS

  • MAINTAIN REGULATION AND LOW RIPPLE at low line input Voltage

  • THREE CONDUCTOR POWER CORD

  • HEAVY DUTY HEAT SINK

  • INPUT VOLTAGE: 105-125VAC

  • OUTPUT VOLTAGE: 13.8VDC ±0.05 volts?

  • INTERNALLY ADJUSTABLE VOLTAGE (11-15VDC)

  • RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)

  • LOAD REGULATION: 0.08% from 0 to Full Continuous Load??

  • EFFICIENCY: 77%

  • OPERATING TEMP: -10 to 55°C

  • ANDERSON POWER POLES INSTALLED IN -AP MODELS
