Description

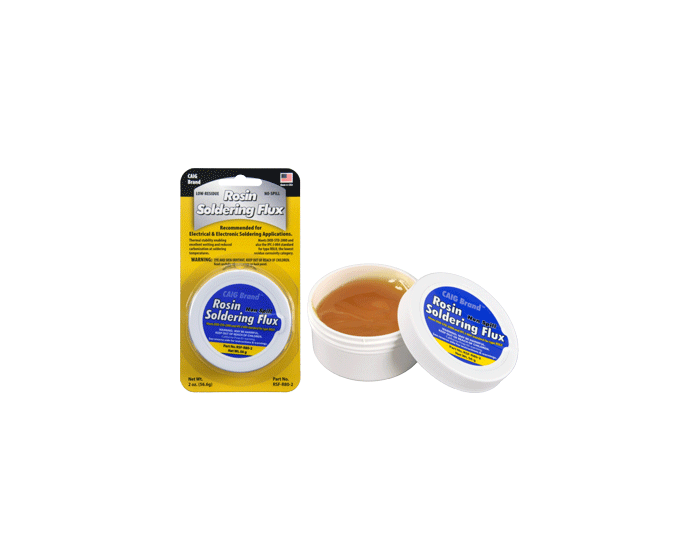

CAIG Rosin Soldering Flux, 56g
General purpose flux for soldering electrical connections. Use CAIG NO-CLEAN Soldering Flux, TYPE RSF-R39 for precision soldering. See our other CAIG products HERE.
KEY FEATURES:
RSF Rosin Flux is a mildly activated rosin flux that is considerably more active than water-white rosin
Activity closely approaches that of fully activated rosins
Conforms to all requirements of Type RMA
Rosin Core, Mildly Activated of Federal Specification QQ-S-571
The RSF paste ux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0, the lowest residue corrosivity category
Thermal stability enabling excellent wetting and reduced
carbonization at soldering temperatures
*See more information in the Specifications Tab*
Specifications
Softening Point: 160 F (71 C)
Rosin Grade: WW per Fed. Spec. LLL-R-626
Acid No. (of Rosin): 150
Water Extract Resisitivity: 110,000 ohm-cm
Effect on Copper Mirror: None
Fungus Resistance Per MIL-E-5272
Nonflammable, noncorrosive.
