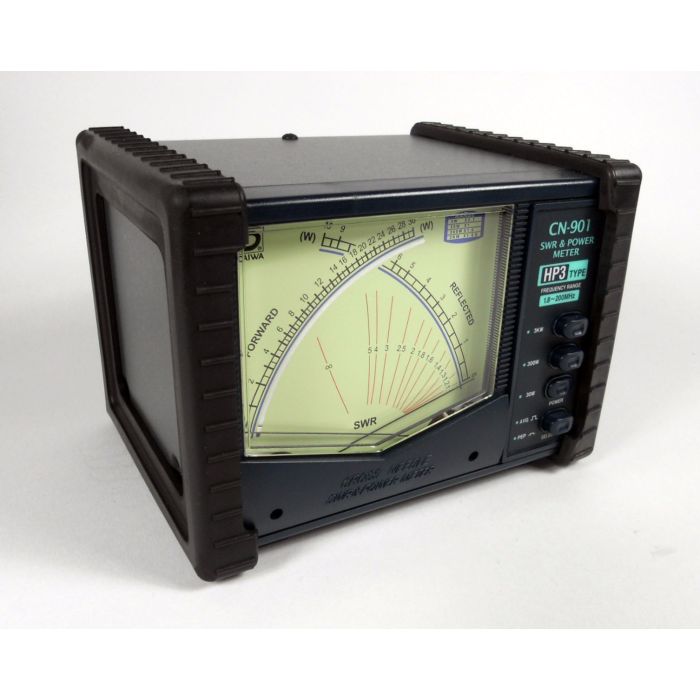

Daiwa CN-901HP3 Professional Series Bench SWR/Wattmeter Meter - CN-901HP3
Daiwa CN-901 Professional Series Bench Meters offer accurate readings, reliable performance, and great value.
Daiwa's large, lighted and easy-to-read cross needle meters will provide your ham shack with consistent readings. CN-901 Series meters feature qualities that will make measuring SWR and power during an antenna test, as well as matching and tuning transmitters, an easy task.
Their dual-needle meters have one scale that measures forward power while the other reads reflected power. The SWR is indicated at the crossing point of the two needles… so you can read all three of these important measurements at the same time!
Their HP models can also measure P.E.P. That's peak power in SSB operation. A DC cable with 2.5mm plug is included. There are also several frequency-ranges and power levels in the Daiwa CN-901 professional series family to choose from.
For Amateur Radio operations, it's hard to beat the value and performance of Daiwa CN-901 Professional Series Bench Meters!
SWR and Power indicators are installed in one meter unit. One scale will be indicated at the crossing point of the 2 needles. This unique feature makes it possible to read all of Forward Power, Reflected Power and SWR at the same.
HP3 type can also measure P.E.P Peak Power in SSB operation. (can not measure Reflected Power range.)
Purchase your Daiwa CN-901 Professional Series Bench Meter from GigaParts today!
Michael Brigmond Brand Manager GigaParts 12/09/2022
The CN-901 Series is high quality Instrument with unique features which make tedious measurement of SWR and Power during antenna tests, matching and tuning of transmitters a very easy task.
SWR and Power indicators are installed in one meter unit.
One scale will indicate Forward Power. Another scale Reflected Power and SWR is indicated at the crossing point of the 2 needles.
This unique feature makes it possible to read Forward Power. Reflected Power and SWR all at the same time.
HP Type and HP3 Type can also check P.E.P. (Peak Power in SSB operation.)
Brand: | Daiwa Products |
Manufacturer's Part Number: | CN-901HP3 |
GigaParts Number: | ZDW-CN-901HP3 |
Part Type: | SWR/Wattmeters |
Product Line: | Daiwa CN-901 Professional Series Bench Meters |
Meter Frequency Range: | 1.8-200 MHz |
Minimum Power Range: | 30W |
Middle Power Range: | 300W |
Maximum Power Range: | 3,000W |
Meter Style: | Cross needle |
Meter Illumination: | Yes |
Peak Power Readout: | Yes |
Peak Hold: | Yes |
Built-In Frequency Counter: | No |
Meter RF Connector Type: | UHF female SO-239 |
DC Power Required: | Yes |
External Power Input Voltage: | 13.8 Vdc |
Remote Sensor Included: | No |
SWR/Wattmeter Width: | 6.300 in |
SWR/Wattmeter Height: | 4.300 in |
SWR/Wattmeter Depth: | 4.800 in |
SWR/Wattmeter Weight: | 2.20 lbs |
