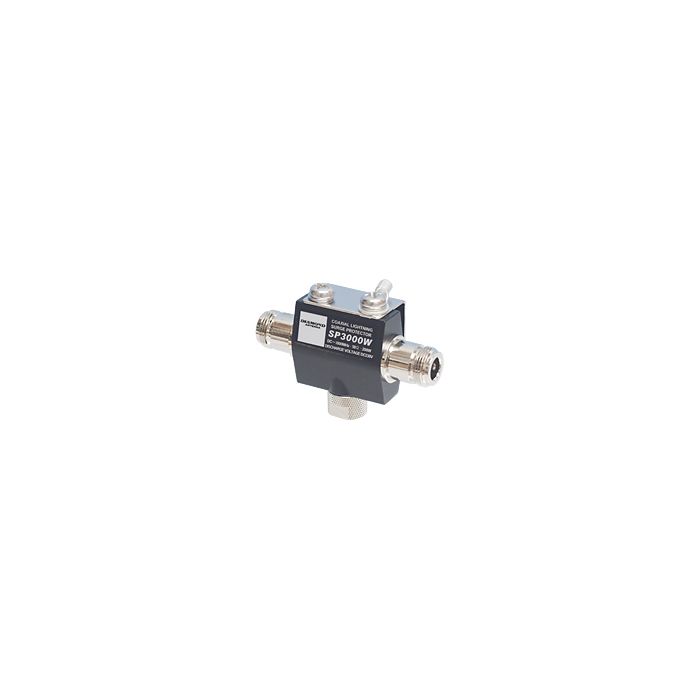

Diamond SP3000W Lightning Arrester

Diamond SP3000W Lightning Arrester SKU: ZDM-SP3000W


Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

Diamond SP3000W Lightning Arrester

Special Features:
• The SP3000W is waterproof.

Frequency: DC – 3,000 MHz
SWR: less than 1.1
Insertion Loss: less than 0.2 dB
Max Power Rating: 200w PEP
Connector: Type N female – Type N female
Impulse Wave Discharge Voltage: 1000v
Impulse Wave Discharge Capacity: 6000A
Impulse Wave Retention Discharge Capacity: DC230v ± 20%
Insulating Resistance DC100v: Over 10,000M ohms
Weight: 0.25 lbs. / 113g
Dimensions: 3.1"x1.6"x0.8" / 78Wx41Hx20D mm
