EndFed 1/2 Wave 800W 40M-10M Wire Antenna

EndFed 1/2 Wave 800W 40M-10M Wire Antenna SKU: ZMF-1984HP


Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

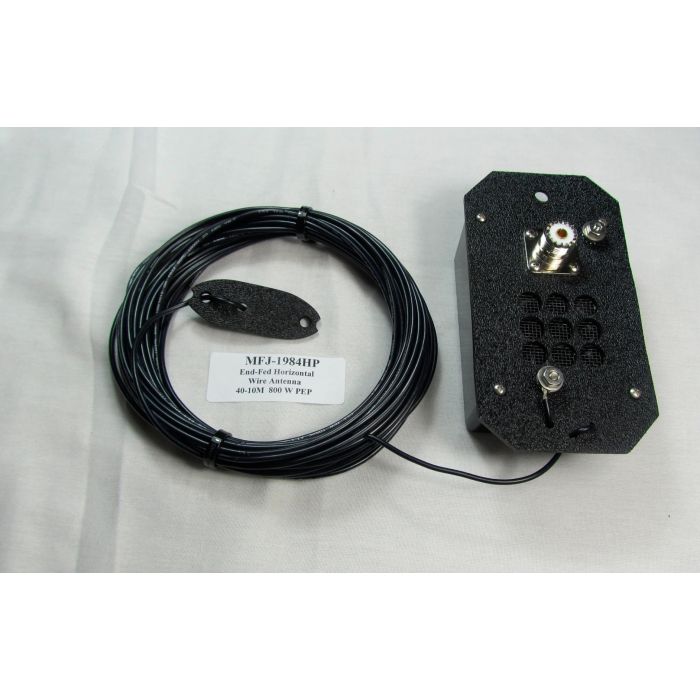

MFJ-1984HP EndFed 1/2 Wave 800W 40M-10M Wire Antenna 66 feet

    • ULL HF Coverage, no tuner needed on most frequencies.
    • No long counterpoise, radials or feedline required.
    • Rugged weather-resistant 50-Ohm matching network.
    • Fast Setup and takedown.
    • Easy Storage/transport.
    • Stainless Hardware, UV resistant materials throughout.

End-Fed Horizontal Wires(EFHW) cover multiple bands with-out traps, stubs, or resonators.
End-fed radiators have the unique quality of resonating on the 1/2-wave fundamental frequency plus odd/even harmonics above!
Broad-band matching transformer at feed point lets the entire HF spectrum be yours! SWR is so low you may never need a tuner.
Get on the air! Just one high center or end support -- installation is fast for home, road, emergencies.
EFHWs install virtually any-where in minutes! Comes with a rugged insulated-wire radiator that prevents detuning when contacting limbs/branches. "No-snag" end insulator slides over branches and through foliage without hang-ups.
Toss your EFHW over a high limb for an inverted-V, raise the far end high for a powerful sloper, or even go vertical with an inverted-L. Dark jacketed wire is virtually invis-ible -- Don`t let antenna restric- tions keep you off the air!
It`s no secret that weather events are getting stronger -- the EFHW makes a great emergency back-up for your regular antenna.
Power ratings are in Watts PEP for SSB/CW modes, with 50% or less transmit time (ICAS). Each network designed and tested to ensure great performance in a wide range of operating conditions.
End-fed horizontal wire, an EFHW, offers the perfect solution for a wide range of ham activities.



2:1 SWR Span

40M 7.19/1.4 Full Band
30M 10.8/1.3 Tuner Required
20M 14.3/1.3 Full Band
17M 18.1/1.8 Full Band
15M 21.25/1.1 Full Band
12M 24.9/1.5 Full Band
10M 28.2/1.0 28.0-28.80
