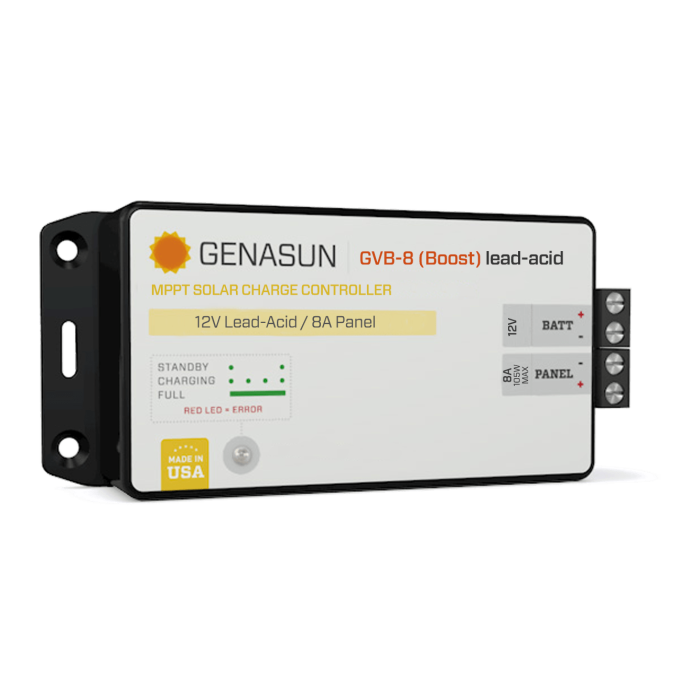

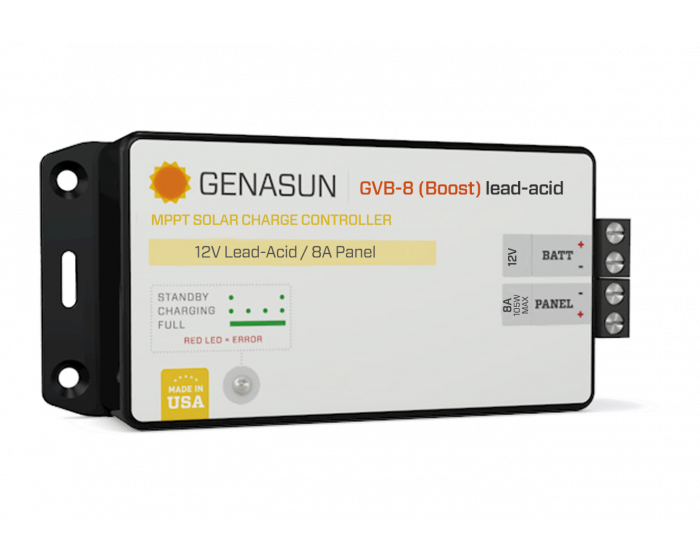

Genasun MPPT Voltage Boosting Solar Controller for Lead Acid Batteries

SKU
ZGN-GVB-8-PB-12V
$104.95
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Genasun MPPT Voltage Boosting Solar Controller for Lead Acid Batteries

Want to see a 27V grid-tie panel charge a 48V battery pack? Get a GVB.
Most solar charge controllers move power from a higher voltage panel to a lower voltage battery bank. The GVB-series controllers, in contrast, pump electricity up hill. These controllers will take a lower voltage panel and boost the voltage to charge a 24V, 36V or 48V battery pack. In fact, the GVB's will work with almost any panel that's below your battery voltage. Larger panels are cheaper per Watt than smaller panels, so using one large panel and a boost controller results in a significantly lower system cost than smaller panels in series with a conventional charge controller.

Mission-Critical Reliability
Genasun controllers are deployed to the most remote locations on earth. They endure years at sea, harsh Antarctic winters, freezing conditions in the upper atmosphere on solar powered airplanes, and in a few off-the-map locations. Made in the USA, each controller is put through complete electrical testing to ensure reliability. If you need mission-critical power, this is your controller.

High-Speed MPPT: Always on Target
Not all Maximum Power Point Tracking controllers were created equally. Most use a sweep and sleep method that scans the entire voltage range every 30-60 seconds. That's okay for a clear day, but traditional controllers are constantly off target during changing cloud conditions – exactly when power is scarce and is needed the most. Genasun controllers adapt to changing light conditions 20 times every second. They are always on target, capturing every bit of available sunshine. Simply put, other controllers can't keep up.

Computer-controlled, temperature-compensated 3-stage battery charging
Precise computer controlled charging ensures the optimal charge cycle for your battery. This increases the battery life, and maximizes battery capacity.

LED Indicator
The built-in LED will quickly tell you that you've installed the controller correctly. Simple to read, it will also let you know when the battery is charging from solar power, and when the battery has reached full charge.

Marine Grade: Reliable Power After Years at Sea
Genasun Boost controllers provide reliable power in the harshest environments on earth. GVB's have been powering boats on round-the-world sailing races for years..

No Fans. No Relays.
Fans get clogged with dust and dirt. Relays eventually stop switching. Genasun controllers use advanced electrical design that obsoletes these parts. With fewer moving parts to wear out, Genasun controllers outlast the competition.



  GVB-8-Pb-12V GVB-8-Pb-24V GVB-8-Pb-36V GVB-8-Pb-48V GVB-8-Pb-CV
Rated Panel (Input) Current1: 8 A
Minimum Panel Voltage for Charging: 5 V
Minimum Battery Voltage for Operation: 9.5 V
Trickle Charge to Recover Dead (0V) Battery: Yes
Maximum Input (Panel) Voltage: 60 V
Recommended Max Panel Voc at STC: 50 V
Input Voltage Range: 0 - 60 V
Maximum Input Short Circuit Current1,2: 8 A
Maximum Input Current3: 15 A
MPPT Tracking Speed: 15 Hz
Operating Temperature: -40°C - 85°C
Maximum Full Power Operating Ambient4: 70°C
Warranty: 5 years
Connection: 4-position terminal block for 10-30 AWG wire
Certifications: cETLus, CE, FCC, RoHS
Weight: 6.5 oz (185g)
Dimensions: 5.5" x 2.5" x 1.2" (14 cm x 6.5 cm x 3.1 cm)
Environmental Protection: IP40, Nickel-Plated Brass & Stainless Hardware
Maximum Recommended Panel Power (8 A Panel with ~155 mm cells): 105 W 210 W 325 W 350 W See specs for closest -Pb equivalent
Maximum Recommended Panel Vmp: 13 V 26 V 41 V 43 V See specs for closest -Pb equivalent
Nominal Battery Voltage: 12 V 24 V 36 V 48 V See specs for closest -Pb equivalent
Charge Profile: Multi-Stage with Temperature Compensation
Bulk Voltage: 14.4 V 28.8 V 43.2 V 57.6 V See specs for closest -Pb equivalent
Absorption Voltage: 14.2 V 28.4 V 42.6 V 56.8 V See specs for closest -Pb equivalent
Absorption Time: 2 Hours See specs for closest -Pb equivalent
Float Voltage: 13.8 V 27.6 V 41.4 V 55.2 V See specs for closest -Pb equivalent
Re-Absorb (Re-Bulk)5: 12.5 V 25 V 37.5 V 50 V See specs for closest -Pb equivalent
Battery Temperature Compensation (relative to 25°C): -28 mV/°C -56 mV/°C -84 mV/°C -112 mV/°C See specs for closest -Pb equivalent
Electrical Efficiency: 95%-97% typical 96%-98% typical 96%-98% typical 96%-99% typical See specs for closest -Pb equivalent
Standby Consumption: 7 mA 6 mA 6 mA 5 mA See specs for closest -Pb equivalent
