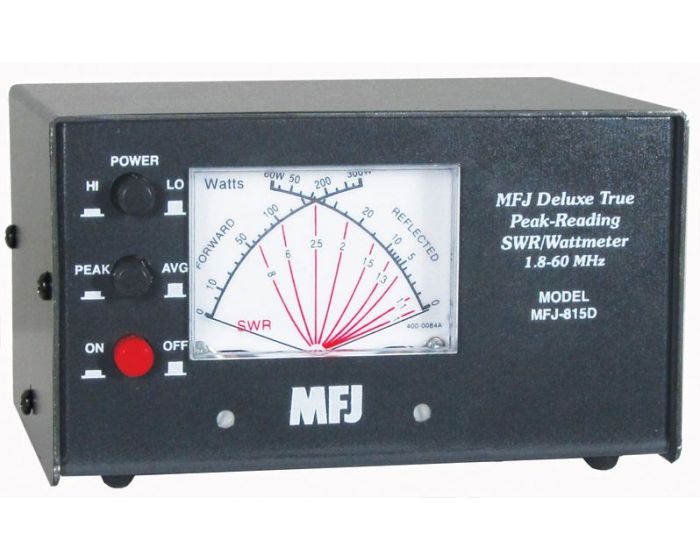

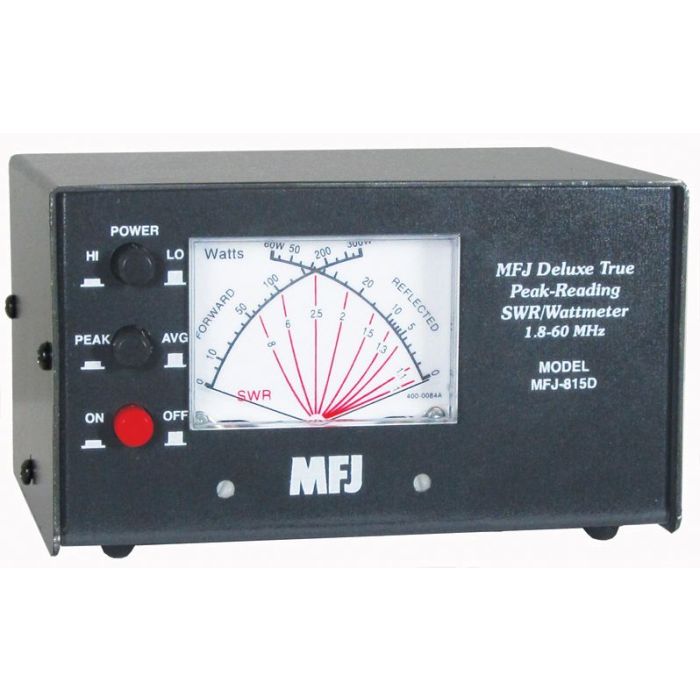

MFJ-815D HF + 50 MHz Cross Needle SWR / Wattmeter

MFJ-815D SWR/Peak Power Meters

MFJ-815D SWR/Peak Power Meters are true peak-reading SWR/Wattmeters designed to operate on 1.8-60 MHz.
These meters use MFJ's TrueActive peak reading circuit to read either true peak or average forward and reflected power.
They also indicate SWR simultaneously.
MFJ-815Ds have 3000/300 Watts forward and 600/60 Watts reflected power scales.
They utilize a large, illuminated, three-inch cross-needle meter to indicate SWR from 1:1 to infinity.
Modern HF rigs and even some power amplifiers cover 160 through 6 meters.
Use MFJ-815D SWR/Peak Power Meters to measure your station's power and SWR!

Michael Brigmond Brand Manager GigaParts 11/3/22


Covers 1.8-60MHz • LED Backlighted lamp • Large 3” Cross-Needle Meter • True Active Peak Reading Circuit MFJ-815D reads true-peak or average power on a large illuminated three-inch Cross-Needle Meter. Its TrueActive peak reading circuit gives you an incredibly accurate SWR and power reading in SSB and CWover a wide frequency range. The Cross-Needle Meter reads SWR and true peak average, forward and reflected power simultaneously -- all in a single glance. You get Frequency coverage from 1.8 to 60 MHz. Has mechanical adjustment for accurately zeroing the meter. Push button selects range, meter lamp on/off and peak for SSB or average for CW operation. SO-239 Connectors. MFJ-815D has 3000 and 300 Watts forward and 600/60 Watts reflected power ranges. Read SWR from 1:1 to 8:1. LED Meter lamp uses 12 VDC or 110 VAC with optional MFJ-1312D TrueActive Peak Reading Circuit can use 9 Volt battery. All metal black aluminum cabinet measures 6W x 3 1/2H x 4 1/2D inches.

Brand: MFJ
Manufacturer's Part Number: MFJ-815D
GigaParts Number: ZMF-815D
UPC:  650619005103
Part Type: SWR/Wattmeters
Product Line: MFJ-815D SWR/Peak Power Meters
Meter Frequency Range: 1.8-60 MHz
Minimum Power Range: 300 W
Maximum Power Range: 3,000 W
Meter Style: Cross needle
Meter Illumination: Yes
Peak Power Readout: Yes
Peak Hold: No
Built-In Frequency Counter: No
Meter RF Connector Type: UHF female, SO-239
DC Power Required: Yes
External Power Input Voltage: 12 Vdc
Remote Sensor Included: No
SWR/Wattmeter Width: 6.000 in.
SWR/Wattmeter Height: 3.500 in.
SWR/Wattmeter Depth: 4.500 in.
