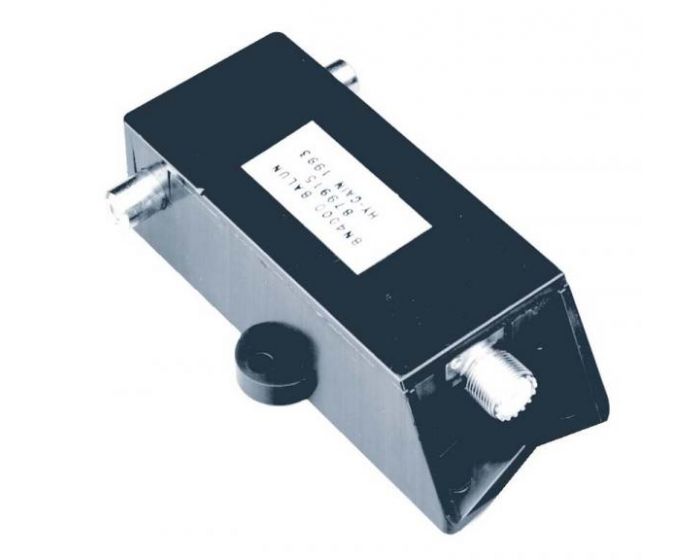

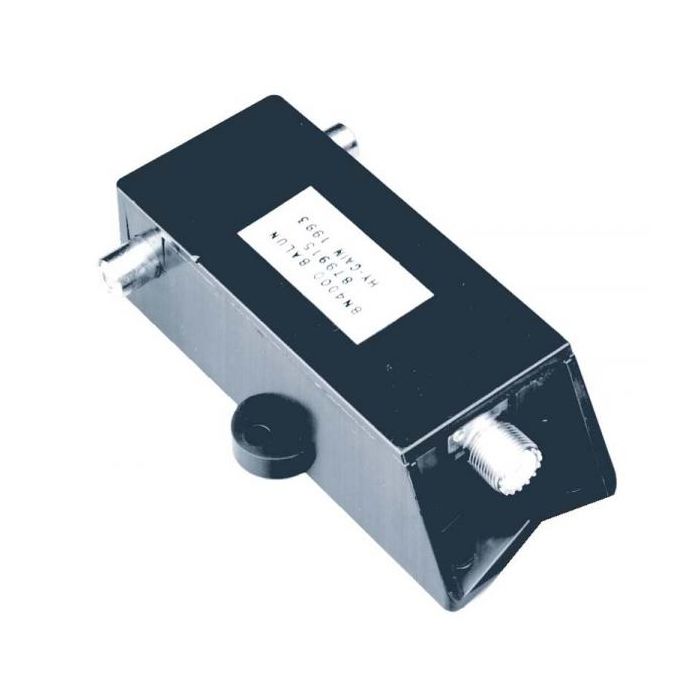

Hy-Gain Beam Balun, 1-54 Mhz, 4Kw, SO-239 - BN-4000B

High Power Balun for Beams

The BN-4000 is a current-type balun whose primary function is to provide the proper current paths between unbalanced coaxial cable and a balanced antenna feedpoint. The BN-4000 uses ferrite beads over a short length of coax cable to choke-off the flow of RF on the outside of the coax shield.

Specifications:

• Frequency: 1 - 54 MHz
• Loss: < 0.1dB
• Max Power: 4000 Watts PEP
• Weight: 1.3 lbs
• Input Connector: SO-239
• Output Connector: std terminal lugs
