Intellitron DL-1564 DC-650MHz Dummy Load, 1.5KW, SO-239 Connector

Intellitron DL-1564 1500W Dry Dummy Load

Intellitron: Expertly Built, Economically Priced

Handle the heat of your high-power station with the Intellitron DL-1564, a heavy-duty 1500W dry dummy load designed for legal-limit testing and precision calibration. Engineered to provide a stable 50-ohm termination without the mess or environmental hazards of oil-filled containers, this ventilated load is the perfect companion for tuning high-power linear amplifiers and modern HF/VHF transceivers. Whether you are verifying your output after a repair or performing initial amplifier setup, the DL-1564 offers the accuracy and thermal management required for professional RF environments.

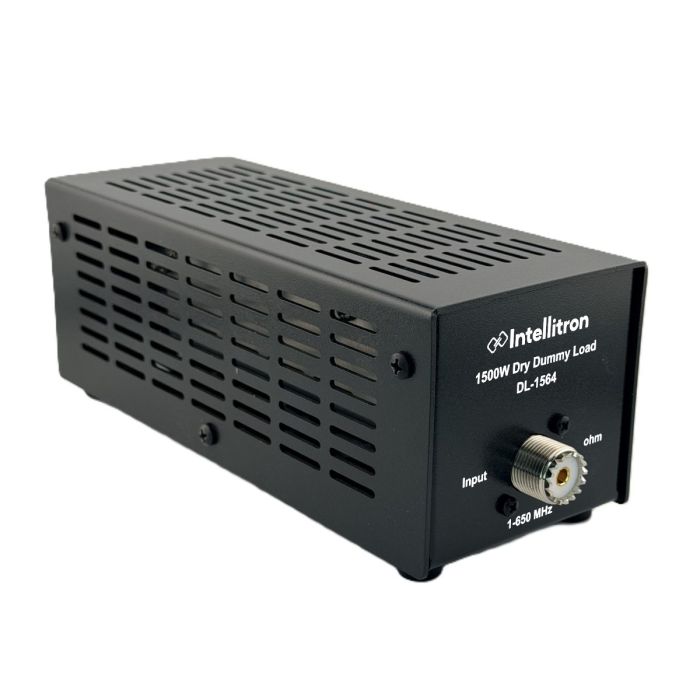

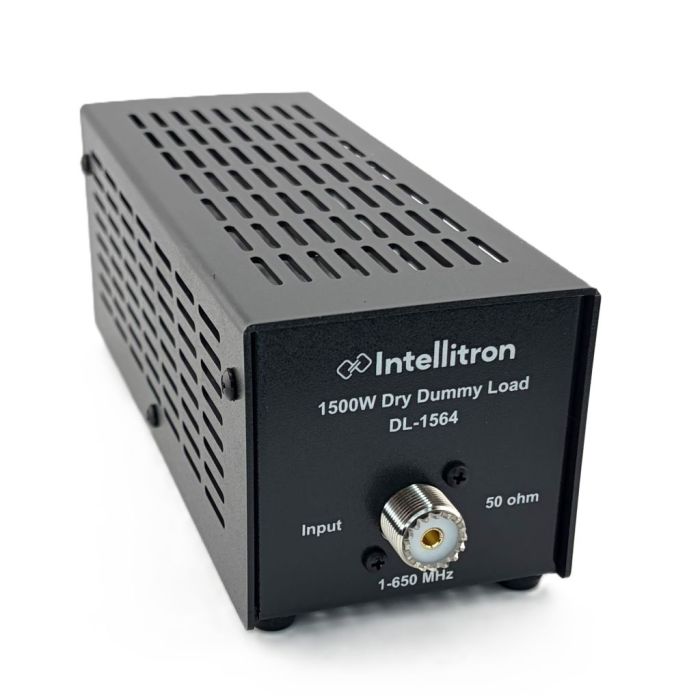

The Intellitron DL-1564 features a precision non-inductive resistor housed within a rugged, ventilated aluminum enclosure that extends its usable frequency range up to 650 MHz. This industrial-grade test load safely dissipates a full 1500 watts for up to 10 seconds, making it ideal for checking legal-limit power levels. To ensure long-term reliability during extended testing, a detailed derating curve is printed directly on the chassis, providing clear guidance on safe duty cycles at various power increments. With its compact 3x3x9 inch profile and standard SO-239 connector, the DL-1564 fits perfectly on any workbench while delivering the electrical performance needed for HF through UHF operations. Stop radiating interference during setup and give your station the professional termination it deserves with a dry load that is built to last.

Don't risk your expensive amplifier components on an inferior test load. Upgrade your test bench with a 1500W solution that combines precision with industrial-strength durability.

UPC Code: 810106912394
