Messi and Paoloni HyperFlex 5 Coax Cable

Messi and Paoloni HyperFlex 5 Coax Cable: Extreme Flexibility for Amateur Radio

The Messi and Paoloni HyperFlex 5 Coax Cable is a standout 5.4mm (.212") coaxial cable, specifically engineered for amateur radio operators who demand extreme flexibility and top-tier performance. It's the most flexible cable in the M&P coax range, making it the perfect choice for applications requiring tight bends, such as rotor antennas, portable operations, and jumpers.

Achieving best-in-class performance for a 5.4mm coax, the HyperFlex 5 boasts an impressive 87% velocity ratio, the highest in the M&P coax range. This ensures minimal signal loss and excellent efficiency across a wide range of frequencies, from HF through microwave. Its exceptional characteristics also make it ideal for CB radio, modem/router (4G/LTE/2G/5G) connections, patch cords, amplifiers, and Wi-Fi signal extension, offering versatile utility for the modern radio enthusiast.

The HyperFlex 5 features a UV-resistant black PVC jacket (overall Ø 5.4mm ± 0.15), providing durability for outdoor use. It's important to note that PVC sheaths are more flexible, but NOT suitable for direct burial.

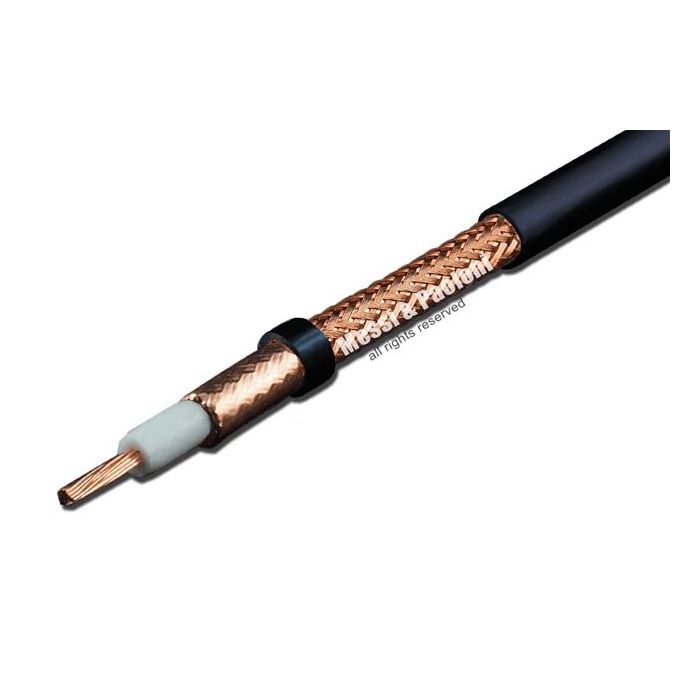

Internally, this cable is built for superior electrical performance. The inner conductor consists of 19x0.29mm pure copper wires, totaling an overall diameter of 1.4mm (0.055 inches). The dielectric is a triple-layer, high-pressure physical injection foamed polyethylene (overall Ø 3.7mm ± 0.05), which contributes to its low capacitance of 74 pF/m.

For exceptional noise reduction, the HyperFlex 5 incorporates a robust dual-shielding system. The first screen is a 100% screening copper foil with an applied PE-layer, preventing cracking from short radius bends. This is complemented by a reactive braid with 88% screening from 120 copper wires, manufactured with advanced 24-spool machines (instead of 16). This results in 50% more crossovers, granting exceptional Screening Attenuation (SA) and allowing the braid to react to twisting and bending like a spring. The combined shielding achieves a Screening Efficiency (SA) of >105 dB from 100-2000 MHz, earning it a Screening Class A++.

With an impedance of 50 Ohm ± 3 at 200Mhz and a maximum peak power of 2,900 Watts, the HyperFlex 5 can handle significant power output. It offers a tight minimum bending radius of 50mm (1.97 in) for up to 15 bends and 25mm (0.98 in) for a single choke bend, providing unparalleled flexibility for installation in confined spaces. The cable operates reliably across a wide temperature range from -45°C to +70°C (-49°F to +158°F).

Key Features:

• Extreme Flexibility: The most flexible cable in the M&P coax range, ideal for tight bends and rotor antennas.
• Best Performance for a 5.4mm Coax.
• Excellent Velocity Ratio: 87% for minimal signal loss.
• UV-Resistant Black PVC Jacket: Durable for outdoor use (not for direct burial).
• Reactive Copper Braid (88% Screening): 120 wires with 50% more crossovers for exceptional noise reduction.
• 100% Screening Copper Foil: Prevents cracking.
• 50 Ohm Impedance.
• High Maximum Peak Power: 2,900 Watts.
• Triple Layer Foamed Polyethylene Dielectric.
• Stranded Copper Inner Conductor (19x0.29mm): Enhances flexibility.
• Wide Temperature Range: -45°C to +70°C (-49°F to +158°F).
• Screening Class: A++ (>105 dB SA from 100-2000 MHz).
• Versatile Applications: Perfect for portable use, CB radio, modem/router connections, patch cords, jumpers, amplifiers, Wi-Fi extension.

Electrical Data Highlights:

• Impedance: 50 Ohm ± 3 @200Mhz
• Minimum Bending Radius: 50mm (1.97 in) (up to 15 bends); 25mm (0.98 in) (single bend)
• Temperature: -45°C to +70°C (-49°F to +158°F)
• Capacitance: 74 pF/m ± 2 (22.6 pF/ft ± 2)
• Velocity Ratio: 87%
• Screening Efficiency (SA) 100-2000 MHz: >105 dB
• Screening Class: A++
• Net Weight (100m/100ft): 4.4 Kg (3.0 lb)
• Maximum Peak Power: 2,900 WATT

The Messi and Paoloni HyperFlex 5 Coax Cable is the go-to choice for amateur radio operators who prioritize extreme flexibility and high performance in a compact form factor.
