Messi and Paoloni PotaFlex 7 Coax Cable

Messi and Paoloni PotaFlex 7 High-Visibility Coax Cable: Designed for Demanding Portable & Outdoor Operations

The Messi and Paoloni PotaFlex 7 High-Visibility Coax Cable is a unique and exceptionally robust coaxial cable, specifically engineered for the most demanding amateur radio applications, particularly outdoor and portable operations like POTA (Parks on the Air) activations. This cable combines incredible sturdiness with lightweight flexibility, ensuring reliability even in extreme conditions.

PotaFlex 7 features a high-visibility and reflective yellow polyethylene jacket (overall Ø 7.65mm ± 0.15). This crucial safety feature makes it highly visible in crowded places, stages, and events, as well as general outdoor applications, significantly reducing trip hazards. The jacket is designed for outdoor use, direct burial, is trample resistant, and perfect for constant handling, offering total waterproofness for long operational longevity.

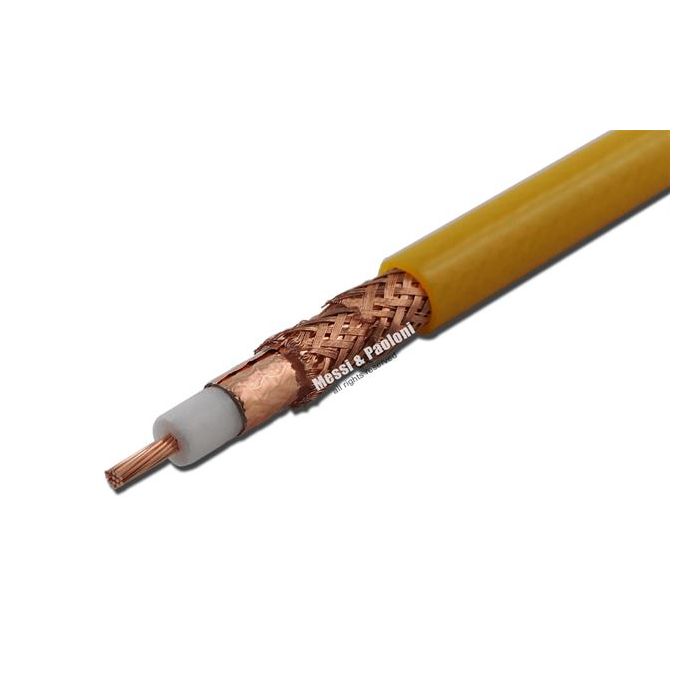

The cable's impressive durability comes from its unique double braid with additional copper foil, forming a true "armor" against extreme conditions. This triple-layer shielding includes:

• 1st Braid: 83% screening from 144 wires of copper clad aluminum.
• 2nd Braid: 80% screening from 144 wires of copper clad aluminum.
• 100% Screening Copper Foil: The first screen, with an applied PE-layer, prevents cracking due to short radius bends. This robust construction results in a Screening Efficiency (SA) of >105 dB from 100-2000 MHz, earning it a Screening Class A++.

Internally, PotaFlex 7 features a 19x0.38mm stranded copper wire inner conductor (overall Ø 1.9mm ± 0.15), providing excellent flexibility. The dielectric is a triple-layer, high-pressure physical injection foamed polyethylene (overall Ø 5mm ± 0.05), contributing to its 83% velocity factor and low capacitance of 75 pF/m.

Designed for ease of use in the field, this cable is engineered to be stripped smoothly and well-frictioned, greatly facilitating the installation of connectors (especially when using M&P's specific scissors). Messi and Paoloni have rigorously tested PotaFlex 7, evaluating its performance after 100 windings and 100 unwindings with very minimal variations, guaranteeing consistent results, especially in combination with their POTA-SPEED accessory.

With an impedance of 50 Ohm ± 3 at 200Mhz and a maximum peak power handling of 8,000 Watts, PotaFlex 7 is well-suited for a wide range of amateur radio transmissions. It maintains reliable operation across a temperature range from -40°C to +60°C (-40°F to +140°F).

ATTENTION: Not all PotaFlex 7 options come with the reel and case. Please consult the product image that appears when an option is selected to determine if it comes with a reel and case.

Key Features:

• Unique High-Visibility Design: Reflective yellow polyethylene jacket for safety in crowded areas and outdoor activations (e.g., POTA).
• Incredibly Sturdy & Flexible: Double braid with additional copper foil for extreme condition resistance.
• Totally Waterproof & Buriable: Designed for outdoor use, direct burial, trample resistance, and constant handling.
• Excellent for Any Application: Versatile and robust.
• Designed for Easy Connector Installation: Smooth stripping and good friction.
• Tested for Repeated Winding/Unwinding: Minimal performance variations, especially with POTA-SPEED.
• Triple-Layer Shielding:
  • 1st Braid: 83% Screening - 144 wires of copper clad aluminum.
  • 2nd Braid: 80% Screening - 144 wires of copper clad aluminum.
  • 100% Screening Copper Foil.
  • Screening Efficiency (SA) >105 dB (100-2000 MHz), Class A++.
• High Pressure Physical Injection Foamed Polyethylene Dielectric (Triple Layer).
• Stranded Copper Inner Conductor (19x0.38mm).
• 50 Ohm Impedance.
• Maximum Peak Power: 8,000 Watts.
• Wide Temperature Range: -40°C to +60°C.

Electrical Data Highlights:

• Impedance @200Mhz: 50 Ohm ± 3
• Minimum Bending Radius: Successfully tested up to 100 bends with PotaSpeed (inner core Ø126mm).
• Temperature: -40°C to +60°C (-40°F to +140°F)
• Capacitance: 75 pF/m ± 2 (22.9 pF/ft ± 2)
• Velocity Factor: 83%
• Inner Conductor Resistance: 7.3 Ohm/Km
• Outer Conductor Resistance: 12 Ohm/Km
• Net Weight (100m): 5.4 Kg (3.63 lbs)
• Maximum Peak Power: 8,000 WATT
• Structural Return Loss: >28 dB (0.3-600 MHz); >22 dB (600-1200 MHz); >18 dB (1200-2000 MHz)

Messi and Paoloni PotaFlex 7 High-Visibility Coax Cable is the ultimate solution for amateur radio operators requiring a rugged, reliable, and highly visible cable that performs flawlessly in demanding portable and outdoor environments.
