Messi and Paoloni StealthFlex 7 Coax Cable

Messi and Paoloni StealthFlex 7 Green Coax Cable: Tactical Performance for Field Operations

Messi and Paoloni StealthFlex 7 Green Coax Cable is a unique and exceptionally robust coaxial cable, specifically designed for demanding field operations where durability, resistance to interference, and discreet deployment are paramount. This model is ideal for various applications, offering an unparalleled blend of strength, flexibility, and tactical advantage.

StealthFlex 7 features a durable and lightweight double braid with an additional copper/PET foil, forming a true "armor" that is designed to withstand the mechanical stresses of multiple unwindings and rewindings in the field. This robust construction ensures greater operational longevity, even under extreme conditions, while providing excellent resistance to electromagnetic interference.

A distinctive matte green military PVC jacket (overall Ø 7.65mm ± 0.15 / 0.301”) makes StealthFlex 7 exceptionally stealthy, allowing it to blend seamlessly into natural environments. For enhanced field deployment, a tactical kit is available (at certain lengths), comprising a green tactical reel for quick setup, a protective case, and two sturdy strain reliefs applied between the connector and the cable. This kit includes pre-installed UHF Evo connectors, which are Messi and Paoloni's ultimate PL connectors, ensuring reliable and high-performance connections right out of the box.

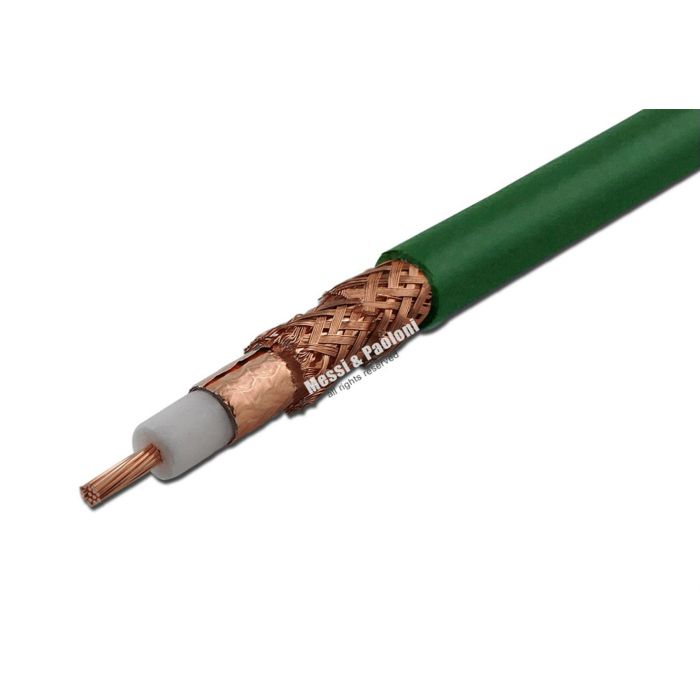

The cable's advanced internal structure includes:

• Inner Conductor: 19x0.38mm copper wires (overall Ø 1.9mm ± 0.15 / 0.075”), providing excellent conductivity and flexibility.
• Dielectric: A triple-layer, high-pressure physical injection foamed polyethylene (overall Ø 5mm ± 0.05 / 0.196”), contributing to its 83% velocity factor and low capacitance of 75 pF/m.
• Triple-Layer Shielding:
  • 100% Screening Copper Foil: The first screen, with an applied PE-layer, prevents cracking due to short radius bends.
  • 1st Braid: 83% screening from 144 wires of copper clad aluminum.
  • 2nd Braid: 80% screening from 144 wires of copper clad aluminum. This comprehensive shielding system ensures a Screening Efficiency (SA) of >105 dB from 100-2000 MHz, earning it a Screening Class A++.

With an impedance of 50 Ohm ± 3 at 200Mhz and a robust maximum peak power handling of 8,000 Watts, StealthFlex 7 is well-suited for a wide range of amateur radio transmissions. It maintains reliable operation across a temperature range from -40°C to +60°C (-40°F to +140°F). Its minimum bending radius is 68mm (2.68 in) for up to 15 bends and 34mm (1.34 in) for a single choke bend, providing versatility in deployment.

Key Features:

• Unique Tactical Design: Matte green military jacket for stealthy deployment.
• Highly Durable: Double braid and additional copper/PET foil create an "armor" against mechanical stress and EMI.
• Optimized for Field Use: Designed for multiple unwindings and rewindings, available with a tactical kit (reel, case, pre-installed UHF Evo connectors, strain reliefs) at certain lengths.
• Flexible and Lightweight: Combines robust construction with ease of handling.
• Triple-Layer Shielding:
  • 100% Screening Copper Foil with PE-layer.
  • Twin Braid: (1st Braid: 83% screening from 144 wires copper clad aluminum; 2nd Braid: 80% screening from 144 wires copper clad aluminum).
  • Screening Efficiency (SA) >105 dB (100-2000 MHz), Class A++.
• High Pressure Physical Injection Foamed Polyethylene Dielectric (Triple Layer).
• Stranded Copper Inner Conductor (19x0.38mm).
• 50 Ohm Impedance.
• Maximum Peak Power: 8,000 Watts.
• Wide Temperature Range: -40°C to +60°C.

Electrical Data Highlights:

• Impedance @200Mhz: 50 Ohm ± 3
• Minimum Bending Radius: Up to 15 bends: 68mm (2.68 in); single bend (choke): 34mm (1.34 in)
• Temperature: -40°C to +60°C (-40°F to +140°F)
• Capacitance: 75 pF/m ± 2 (22.9 pF/ft ± 2)
• Velocity Factor: 83%
• Inner Conductor Resistance: 7.3 Ohm/Km
• Outer Conductor Resistance: 12 Ohm/Km
• Net Weight (100m): 5.4 Kg (3.63 lbs)
• Maximum Peak Power: 8,000 WATT
• Structural Return Loss: >28 dB (0.3-600 MHz); >22 dB (600-1200 MHz); >18 dB (1200-2000 MHz)

Messi and Paoloni StealthFlex 7 Green Coax Cable is the ideal solution for amateur radio operators and field communicators who demand a high-performance, extremely durable, and discreet coaxial cable for critical operations.
