MFJ 6 Way PowerPole Distribution Block - MFJ-1106

SKU
ZMF-1106
$67.95
Add to Wish List

SAVE $7.00

Regular Price: $74.95

$7.00 Instant Rebate (Exp. 12-31-2023)

Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

MFJ 6 Way PowerPole Distribution Block - MFJ-1106

MFJ DC Multiple Outlet Panels

MFJ DC Multiple Outlet Panels are power distribution strips that are used in ham shacks and on test benches around the world. They provide multiple high and low current DC outlets for transceivers and accessories from your main power supply. Using a proper outlet panel keeps your cabling neat, organized and safe! Using outlet panels prevents fire hazards by keeping wires from tangling up and shorting out.

MFJ DC Multiple Outlet Panels are available featuring super heavy-duty 5-way binding posts for high-current banana plugs and/or Anderson PowerPole® connectors, the genderless, polarized and color-coded connectors that are the 12 Vdc standard for ARES and RACES emergency stations.

Also available are MFJ strips that include low power binding posts, or switched outlets, DC meters, and LED indicators. All panels offer mounting ears, wing nut grounding posts, and RF shielding with RF bypassed outputs.

Modernize your DC power distribution system with MFJ DC Multiple Outlet Panels from GigaParts

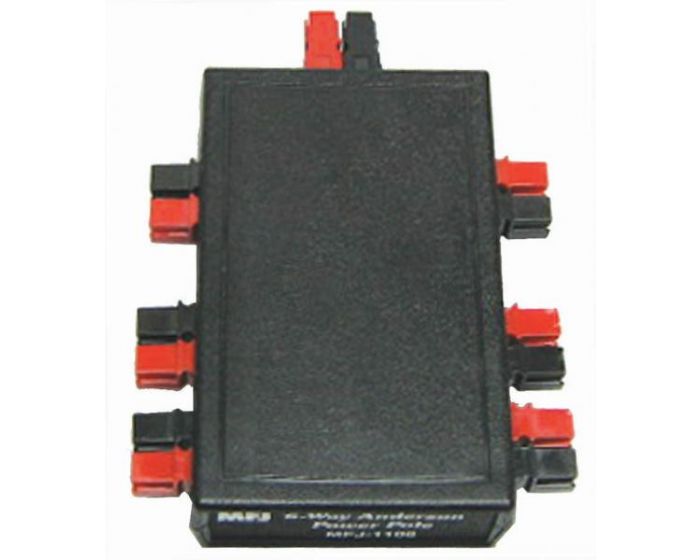

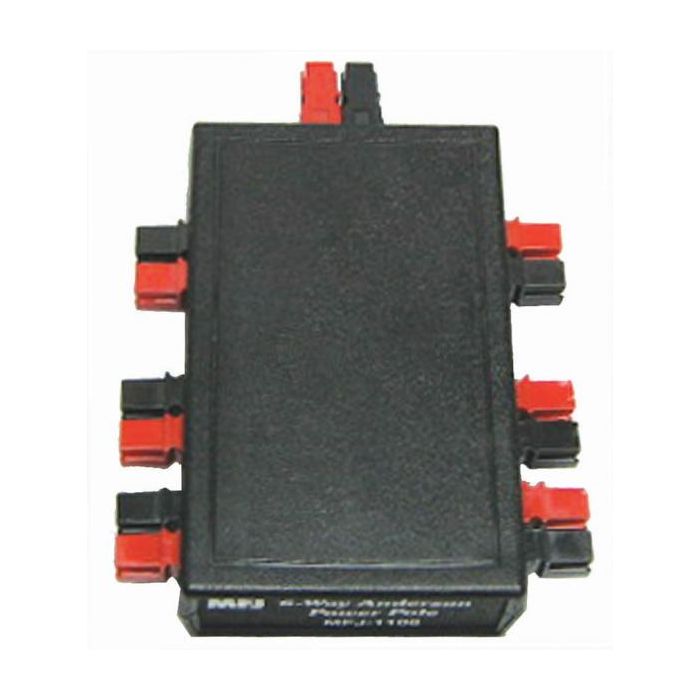

MFJ PowerPoleTM Distribution Box

MFJ-1106 is an inexpensive, compact, and low profile DC distribution platform designed for your operating station desk/workbench.

It contains seven Anderson Power PoleTM connectors all connected in parallel, permitting one DC input to be shared by six DC outputs.

Includes seven sets of mating connectors for your cables.

Any connector may be used as an input or output, and the total current carrying capability is 30-amps.

Unit measures 2 1/4W x 1H x 3 3/4D inches, not including the PowerPole connectors sticking out on three sides.

Brand: MFJ Audible Voltage Alarm: No
Manufacturer's Part Number: MFJ-1106 Built-In Voltmeter: No
GigaParts Number: ZMF-1106 Programmable Fault Thresholds: No
Part Type: DC Multiple Outlet Panels Input Cable Installed: No
Product Line: MFJ DC Multiple Outlet Panels Fused Input: No
High Current Maximum: 30 A Individually Fused Outputs: No
High Current Power Poles: No Combined Fused Outputs: No
High Current Binding Posts: No Fuses Included: No
Low Current Output On/Off Switch: No Outlet Panel Width: 1.250 in.
Low Current Power Poles: Yes Outlet Panel Height: 1.000 in.
Low Current Power Pole Outputs: 6 Outlet Panel Depth: 3.750 in.
Low Current Binding Posts: No UPC: 650619004403
Voltage Monitor: No Quantity: 1 Piece
