MFJ 15 Amp 6 Port Multiple DC Power Outlet - MFJ-1112
MFJ DC Multiple Outlet Panels
MFJ DC Multiple Outlet Panels are power distribution strips that are used in ham shacks and on test benches around the world. They provide multiple high and low current DC outlets for transceivers and accessories from your main power supply. Using a proper outlet panel keeps your cabling neat, organized and safe! Using outlet panels prevents fire hazards by keeping wires from tangling up and shorting out.
MFJ DC Multiple Outlet Panels are available featuring super heavy-duty 5-way binding posts for high-current banana plugs and/or Anderson PowerPole® connectors, the genderless, polarized and color-coded connectors that are the 12 Vdc standard for ARES and RACES emergency stations.
Also available are MFJ strips that include low power binding posts, or switched outlets, DC meters, and LED indicators. All panels offer mounting ears, wing nut grounding posts, and RF shielding with RF bypassed outputs.
Modernize your DC power distribution system with MFJ DC Multiple Outlet Panels from GigaParts
MFJ DC Power Strip

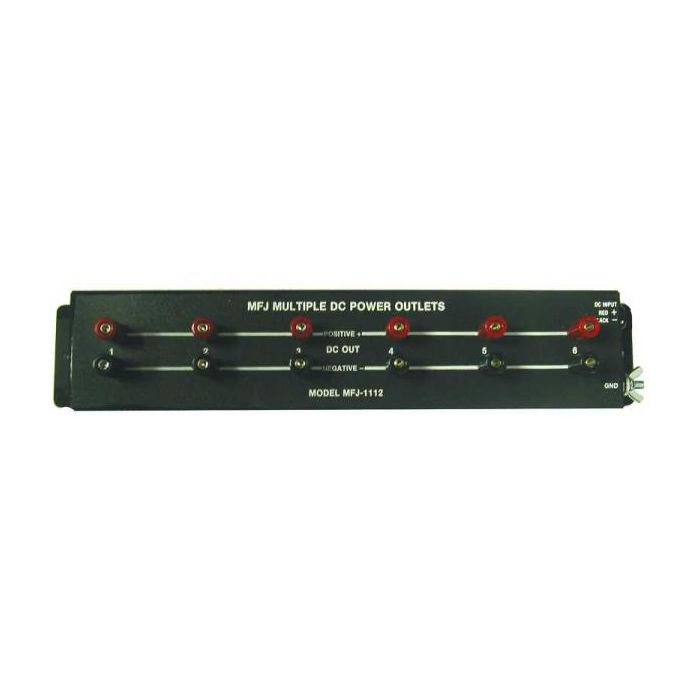

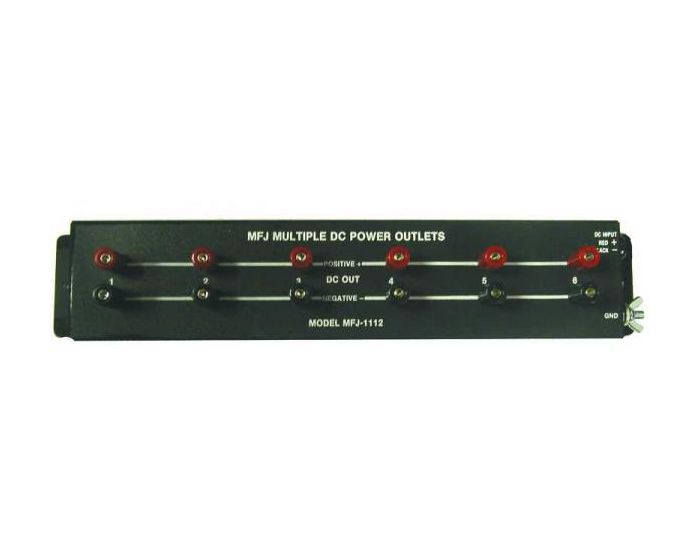

This is the MFJ-1112 15 Amp Multiple DC Power Outlet. It lets you power up to six devices from your transceivers main 12 VDC supply.
The MFJ-1112 DC Multiple power Outlet has six pairs of heavy duty, RF bypassed 5-way binding posts that lets you power your accessories. They handle 15 Amps total.
The MFJ-1112 has six feet super heavy duty eight gauge color-coded cable with ring tongue terminals. Binding posts are spaced for standard du
Brand: | MFJ |
Manufacturer's Part Number: | MFJ-1112 |
GigaParts Number: | ZMF-1112 |
Part Type: | DC Multiple Outlet Panels |
Product Line: | MFJ DC Multiple Outlet Panels |
GigaParts Number: | ZMF-1112 |
High Current Maximum: | 15 A |
High Current Power Poles: | No |
High Current Binding Posts: | No |
Low Current Output On/Off Switch: | No |
Low Current Power Poles: | No |
Low Current Binding Posts: | Yes |
Low Current Binding Post Outputs: | 6 |
Voltage Monitor: | No |
Audible Voltage Alarm: | No |
Built-In Voltmeter: | No |
Programmable Fault Thresholds: | No |
Input Cable Installed: | Yes |
Fused Input: | No |
Individually Fused Outputs: | No |
Combined Fused Outputs: | No |
Fuses Included: | No |
UPC: | 650619002225 |
Quantity: | 1 Piece |
