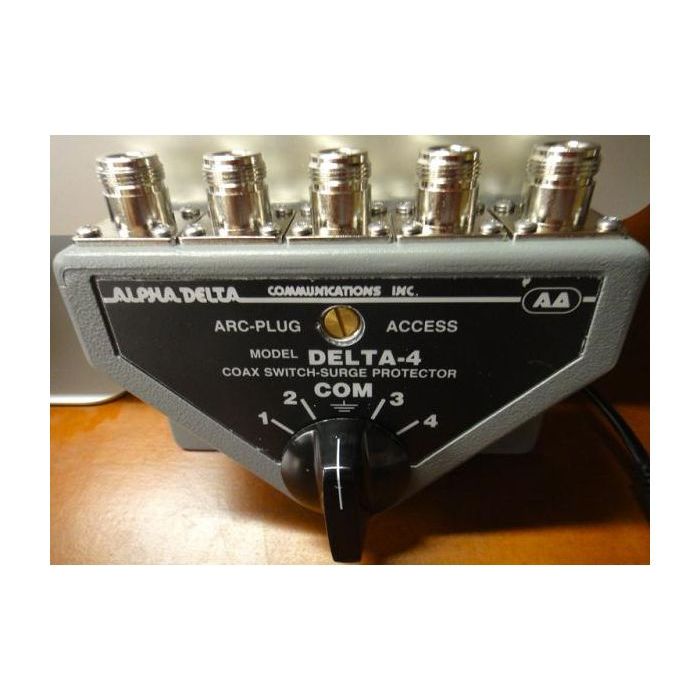

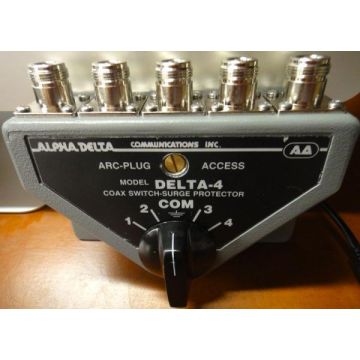

Open Box Alpha Delta DELTA Series Surge Protected 50Ohm Coax Switch with N Connectors SN112669
Model DELTA-4/N is rated through 1.3 GHz
SWITCH POSITIONS Four, two either side of the “common” center, connector.
LIGHTING SURGE PROTECTION Alpha Delta Model D-4 internally mounted, field-replaceable ceramic gas tube Arc-Plug Cartridge Pill.
SPECIAL SWITCHING FUNCTIONS When the knob points to the center (ground) switch position, all antenna circuits are internally disconnected and grounded. When the knob is in an active position, the unused antenna ports are grounded.
The active position circuit is continuously protected by the Model D-4 Arc-Plug Cartridge Pill.
GROUNDING REQUIREMENTS A separate, external ground wire must be used from one set of user-supplied mounting hardware (through either thru-hole on the base plate) to the station ground system. (Not the equipment chassis.) The Arc-Plug Cartridge Pill will not operate without a good ground. Note:
Paint should be removed at point of ground hardware connection to base plate. It is also good practice to ground the coax shield at point of entry to the building.
ELECTRICAL SPECIFICATIONS
Nominal (S0-239 CONNECTORS)
VSWR dB Loss dB Isolation
30 MHz <1.1:1 .1dB >60dB
150 MHz <1.3:1 .15dB >50dB
450 MHz <1.4:1 .5dB 50dB
NOTE: Model DELTA-2B/N has NSN 5985-01-551-0890 and numbers AN/URN-31(V), auto ID system, for MIL users as assigned by the Defense Logistics Agency (DLA). Cage Code 389A5
