Open Box Chameleon CHA RXL Receive Only Loop Antenna SN138891
Checked over and all good. Boxes have GigaParts and shipping labels on them

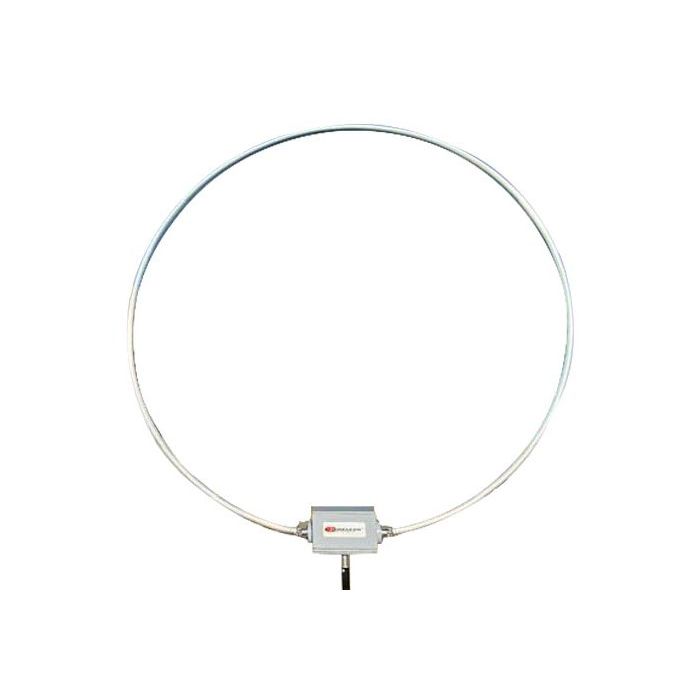

Chameleon CHA RXL Receive Only Loop Antenna
The CHA RXL is a new design high-performance Low Frequency (LF), Medium Frequency (MF), and High Frequency (HF) receive-only loop antenna that can be permanently mounted outside on a mast or used on a camera tripod next to an RV or on an apartment balcony. It's broadband design is ideal for Software Defined Radios (SDRs), panadapters, hams wanting a small low-noise receive-only antenna, shortwave listeners (SWLs), AM broadcast band listeners, and anybody needing a small receive antenna.
Some of the key features of the CHA RXL are:
Wideband design – LF / MF / HF
Highly directional
Balanced input preamplifier to eliminate environmental noise and ground loops
Receives on new 2200m and 630m ham bands
Flexible mounting and power options
Stealthy – Navy gray loop fades into the background sky.
Receive loops are very quiet and highly directional. With the built-in preamplifier, the CHA RXL will enable clearer reception than many large horizontal wire or vertical antennas. The CHA RXL covers all frequencies between 137.5 KHz and 30.0 MHz. Become a WSPR Reporting Station on the new 2200 and 630 meter bands and join the fun!
Loop Amplifier Specifications:
- Frequency: 135.7 KHz – 30.0 MHz continuous
- Power: 12V DC (120V AC wall adapter included USA ONLY)
- Size: 36 in. Loop
- Weight: 7 lbs.
- Mount: Mast or Camera Tripod
- Operating voltage: 12-14 VDC – Polarity Protected, Over-Voltage protection 15.5V – 20V (sustained voltage above 18V may damage the preamp)
- Gain: 25 dB @ 2.5 MHz, 12.5 dB @ 30 MHz (see graph)
- Noise Figure: < 5 dB
- P1dB: >0 dBm relative to the output
- OIP3: > +20 dBm
- Input (no damage): +20 dBm
- RF Power Applied to the Output: 0.25W maximum (do not transmit into the pre-amp)
