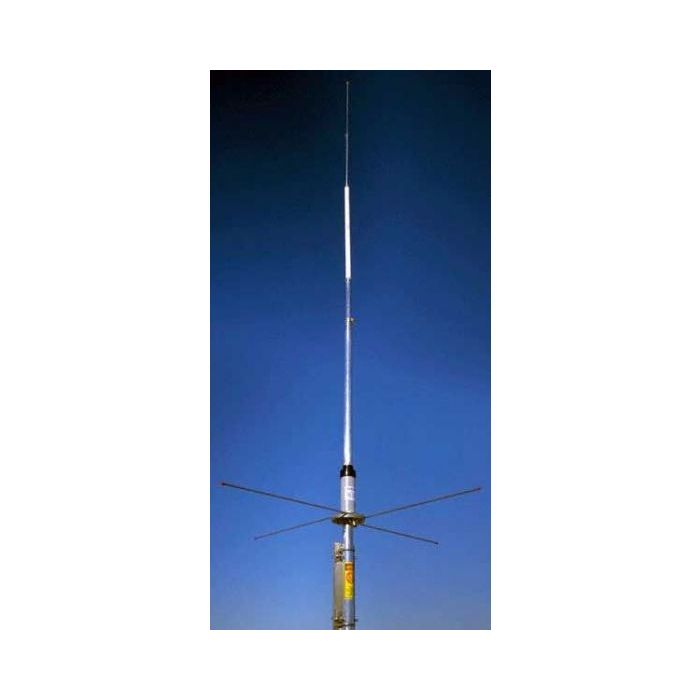

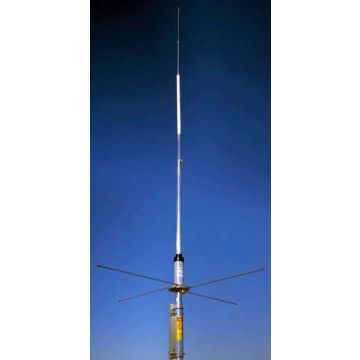

Open Box Hustler G6-144B 2m Vertical Antenna ~117" 600w SN165878

Open Box Hustler G6-144B 2m Vertical Antenna ~117" 600w SN165878

2m Vertical Antenna, 9 ft 9 in, supports up to 600w

Two Meter Vertical
G6-144B

Ideal for fixed or repeater operation.
Optimum gain with collinear phasing.
Low angle radiation for maximum signal.
Constructed  of high strength aluminum.
Totally self supporting design.

Model G6-144B

Electrical:

Radiation Pattern: Omni directional.
SWR: 1.2:1 at resonance
Maximum power input: 600 watts
Gain: 6 dBd
Impedance: 50 ohms nominal
Lightning Protection: Shunt fed direct ground
Mechanical:
Length: 9'9" long, telescopic to 3/8" O.D.
Weight: 10 lb.
Radials: Four 20.25" x 0.375" O.D.
Connector: SO-239
Windload: 26 lb. at 100 mph
Wind Survival: 100 mph
Mounting:  Vertical support up to 1.75 in. O.D. pipe
