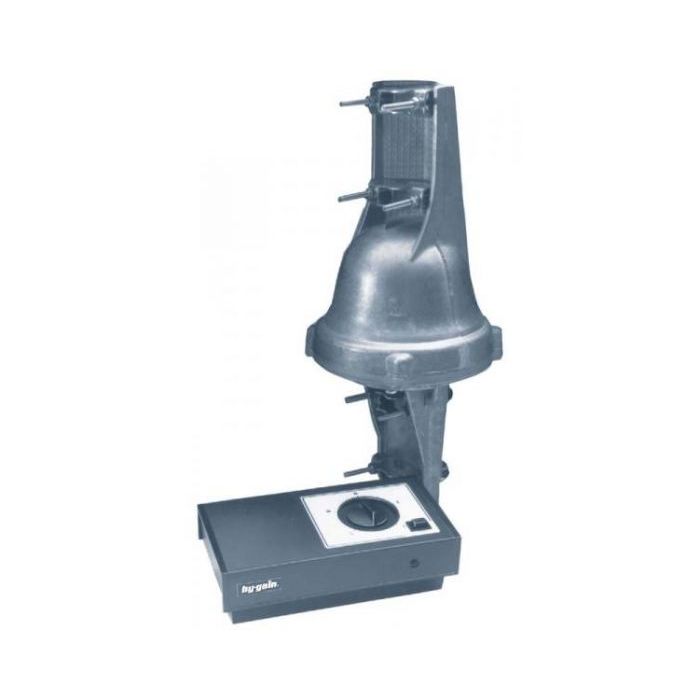

Open Box Hy-Gain AR-40 Rotor and Controller SN145238

Open Box Hy-Gain AR-40 Rotor and Controller SN145238. Box was opened but never used.

The AR-40 is for large FM-TV and compact communication antenna arrays up to 3 square feet wind load area. Dual 12 ball bearing race is exclusive to its class. Automatic position sensor never needs resetting. Fully automatic control -- just dial and touch for any desired location. Solid state, low voltage control, safe and silent operation. It has a maximum mast size of 2 1/16 inches. Includes MSLD light duty lower mast support. Operates at 110V.

Specifications:

• Wind Load Capacity (inside tower): 3.0 sq ft
• Wind Load (w/ Mast Adapter): 1.5 sq ft
• Turning Power: 350 pounds
• Brake Power: 450 pounds
• Brake Construction: Disc Brake
• Bearing Assembly: Dual race/12 ball bearings
• Mounting Hardware: Plated clamps/steel bolts
• Control Cable Conductors: 5
• Shipping Weight: 14 lbs
• Effective Movement (in tower): 300 ft/lbs.
