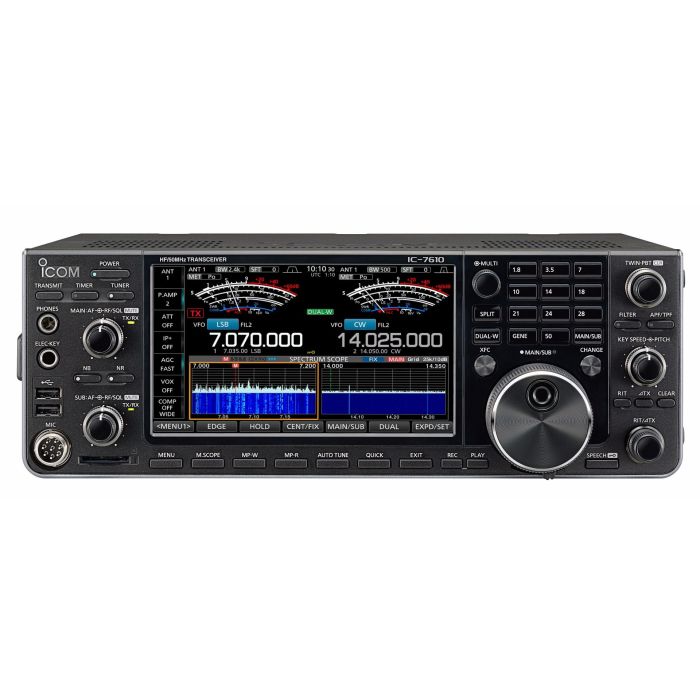

Open Box Icom IC-7610 100W HF/50MHz Transceiver - Like New

Name: Open Box Icom IC-7610 100W HF/50MHz Transceiver - Like New
Brand: Icom
SKU: ZUS-IC-7610-OB
Price: 3245.95 USD
Availability: OutOfStock

SKU: ZUS-IC-7610-OB

Availability:

Out of stock

This item is currently out of stock. We are not accepting backorders at this time.

Description

Open Box Icom IC-7610 100W HF/50MHz RF Direct Sampling SDR Transceiver - Like New!

Faint signals are no longer a challenge for DXers and Contesters around the world, with the new IC-7610. The difference between putting the QSO in the log or trying another time is the capability of your receiver. The high performance RMDR in the IC-7610 has the ability to pick out the faintest of signals even in the presence of stronger, adjacent signals. The IC-7610 introduces dual RF direct sampling receivers. Achieving 100dB RMDR, these receivers rival that of other top-of-the-line transceivers. The IC-7610 also comes with a high-speed, high-resolution, real-time spectrum scope on a 7-inch color display.

Output power: 100W (25W AM)
RX Frequencies: 0.030-60.00MHz
Receiver type: Direct sampling

RF direct sampling system
The IC-7610 employs an RF direct sampling system, where RF signals directly convert to digital data and then processed by the FPGA (Field-Programmable Gate Array). This process reduces distortion that naturally occurs in the various mixer stages found in traditional superhetrodyne receivers.

The RF Direct Sampling System in the IC-7610 is capable of 110 dB* RMDR. This performance gives you the ability to pull weak signals out of the noise of strong adjacent signals. There is a difference you can actually hear as the desired signal comes out of the pileup!
* Representative value at 2 kHz frequency separation (Received frequency: 14.2 MHz, Mode: CW, IF BW: 500 Hz)

Independent dual receiver
Whether listening to both sides of DX station running split, or looking for a multiplier on a different band or mode, the dual receivers in the IC-7610 have you covered. Two separate DIGI-SEL preselectors, two separate Band Pass Filter networks, feed two separate A/D converters into the FPGA.

Dual Digi-Sel
The DIGI-SEL preselectors are RF filters with sharp, narrow passband characteristics preventing Analog-to-Digital Converter overflow from large out-of-band signals when sampling the RF signals. Additionally the third and higher order IMD components are reduced. This is ideal when strong signals are received in a contest pile-up or from broadcast stations on adjacent frequencies or bands.

Large color touch screen
The large 7” color TFT touch LCD offers intuitive operation of functions, settings, and various operational visual aids such as dual spectrum scope aligned vertically or horizontally, simulated analog meters and RTTY, PSK31/63 mode decoded messages.The combination of the touch screen and the multi-dial knob offers quick and smooth operation. When you push the multi-dial knob, menu items are shown on the right side of the display. You can select an item by touching the screen and can adjust the levels by turning the multi-dial knob.

Don't miss this LIKE NEW Icom IC-7610 from GigaParts!

UPC Code: 731797029249

Features

Innovative RF Direct Sampling System Achieves to 110 dB* (typical) of RMDR

The RF direct sampling system directly converts the analog signals to digital signals, and collectively puts the data through FPGA (Field Programmable Gate Array) processing. The master clock uses a high precision oscillator which excels in low-noise characteristics. This makes it possible to provide superior receive and transmit performance, extremely low phase noise as well as high RMDR (Reciprocal Mixing Dynamic Range). * At 2 kHz frequency separation.

Independent Dual Receiver Receives Two Bands Simultaneously

The sub receiver works independently of the main receiver. The dual receiver is perfect to simultaneously monitor two bands and two modes. Independent AF/RF knobs for the main and sub bands improve usability.

DIGI-SEL Preselector Firmly Shuts Out Interference Signals

Both main and sub receivers are equipped with DIGI-SEL (digital preselector) units. The DIGI-SEL has steeper skirt characteristics than normal bandpass filters, so it rejects out of band strong interference such as broadcast stations, and prevents cross modulation.

High-speed, High-resolution Real-time Spectrum Scope

The real-time spectrum scope of the IC-7610 shows main and sub band conditions. It provides class-leading performance in resolution, sweep speed and a 100 dB of dynamic range. The waterfall screen allows you to find weak signals by showing spectrum change over time. The audio scope function shows the FFT scope and oscilloscope.

7-inch Color Display with Touch Screen Function

The large 7-inch color display shows various operating and setting information at a glance in high resolution (800 × 480 pixels). The combination of the touch screen and the Multi-function control knob offers smooth, intuitive and speedy operation.

Other Features

Built-in high-speed automatic antenna tuner
Newly designed large speaker housing offers superior sound quality, making use of the high-purity received signal
SD card for saving various setting information and recording communications* * An SD card is required separately.
Digital IF filter and digital twin PBT for interference rejection
IP remote control capability with the optional RS-BA1
External monitor connection with a DVI-D port

Specifications

Frequency Coverage

Receiver

0.030 - 60.00 MHz * Guaranteed range: 0.500 - 29.999, 50.000-54.000 MHz.

Transmitter

1.800 - 1.999, 3.500 - 3.999, 5.255 - 5.405* Some frequency bands are not guaranteed.
7.000 - 7.300, 10.100 - 10.150, 14.000 - 14.350
18.068 - 18.168, 21.000 - 21.450, 24.890 - 24.990
28.000 - 29.700, 50.000 - 54.000 MHz

Modes: USB, LSB, CW, RTTY, PSK, AM, FM

Number of channels : 101 (99 regular, 2 scan edges)

Antenna connectors

SO-239 x2 (50 ohm unbalanced (Tuner off))
BNC x 1 (RX antenna In/Out)

Power supply requirement: 13.8VDC

Power Consumption

TX: 23A (at 100W output)
RX: 3.0A typical (standby), 3.5A (maximum audio)

Dimensions (W x H x D): 13.4 x 4.6 x 10.9 inches

Weight: 18.7 LBS

Output power (HF/50 MHz)

SSB/CW/FM/RTTY/PSK: 1-100W
AM: 1-25W

Receiver System: Direct Sampling Superheterodyne

Includes

LIKE NEW open box Icom IC-7610 Transceiver

HM-219 Hand Mic

MB-121 Carrying Handle

DC Power Cable

Fuses

Plugs

Warranty Card

User Manual
