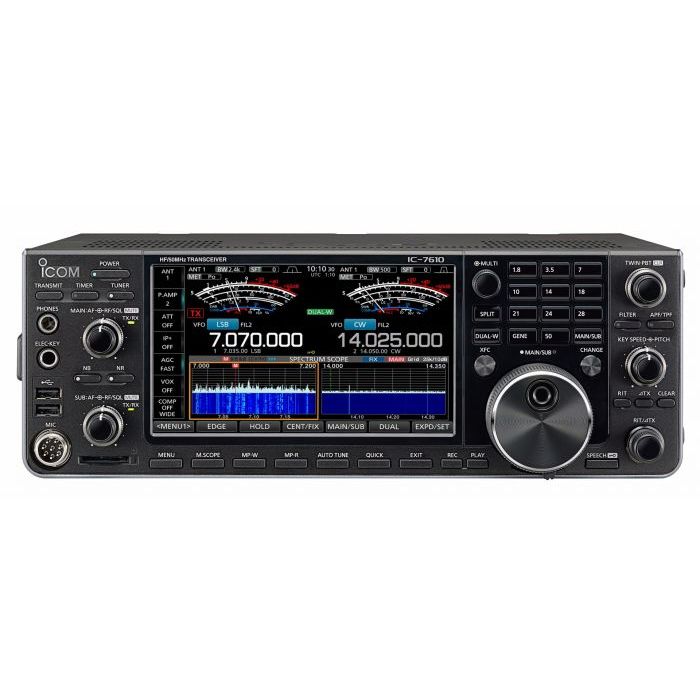

Open Box Icom IC-7610 HF/50MHz 100W Transceiver S/N: 22002729

Open Box Icom IC-7610 HF/50MHz 100W Transceiver S/N: 22002729

Refreshed by ICOM and good to go

Frequency Coverage

Receiver

0.030 - 60.00 MHz * Guaranteed range: 0.500 - 29.999, 50.000-54.000 MHz.
Transmitter

1.800 - 1.999, 3.500 - 3.999, 5.255 - 5.405*  Some frequency bands are not guaranteed.
7.000 - 7.300, 10.100 - 10.150, 14.000 - 14.350
18.068 - 18.168, 21.000 - 21.450, 24.890 - 24.990
28.000 - 29.700, 50.000 - 54.000 MHz
Modes: USB, LSB, CW, RTTY, PSK, AM, FM

Number of channels : 101 (99 regular, 2 scan edges)

Antenna connectors

SO-239 x2 (50 ohm unbalanced (Tuner off))
BNC x 1 (RX antenna In/Out)
Power supply requirement: 13.8VDC

Power Consumption

TX: 23A (at 100W output)
RX: 3.0A  typical (standby), 3.5A (maximum audio)
Dimensions (W x H x D): 13.4 x 4.6 x 10.9 inches

Weight: 18.7 LBS

Output power (HF/50 MHz)

SSB/CW/FM/RTTY/PSK: 1-100W
AM: 1-25W
Receiver System: Direct Sampling Superheterodyne
