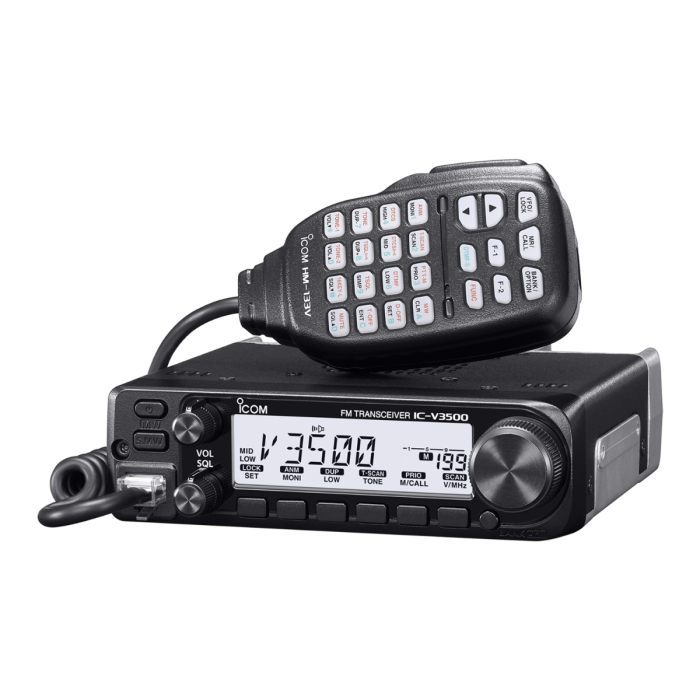

Open Box Icom IC-V3500 65W 144MHz FM Mobile Transceiver

Name: Open Box Icom IC-V3500 65W 144MHz FM Mobile Transceiver
Brand: Icom
SKU: US2801
Price: 211.29 USD
Availability: InStock

SKU: US2801

Availability:

In stock

$211.29

VIP Price

After Mail-In Rebate

Available New

This is a used or open-box unit. The same product is also available new.

Icom IC-V3500 65W 144MHz FM Mobile Transceiver $219.95 In stock

View New Product

Description

Specifications

I. GENERAL
Frequency Coverage	Transmit	144–148 MHz
Frequency Coverage	Receive	136–174 MHz*
Mode / Type of Emission		FM, NFM (F2D, F3E)
Number of Memory Channels	Total	207 channels (incl. 1 call and 6 scan edges)
Tuning Steps		5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz
Frequency Stability		±3 ppm (@ -10 to +60°C)
Power Supply Requirement	DC Input	13.8 V DC ±15%
Current Drain (approximate)	Tx (65 W)	11 A
Current Drain (approximate)	Rx (Max. audio/Stand-by)	1.5 A / 0.4 A
Antenna Impedance / Connector		50 Ω (SO-239)
Operating Temperature Range		–10°C to +60°C; 14°F to +140°F
Dimensions (W×H×D) (Projections not included)		140 × 40 × 118 mm (5.5 × 1.6 × 4.6 in)
Weight (approximate)		1.1 kg (2.4 lb)
*Receive range is the working range; the guaranteed range may be 144–148 MHz.
II. TRANSMITTER
Output Power (at 13.8 V DC)	Selectable steps	65 W, 25 W, 10 W, 5 W
Modulation System		Variable reactance frequency modulation
Max. Frequency Deviation	Wide/Narrow	±5.0 kHz / ±2.5 kHz
Spurious Emissions		Less than –60 dBc
Microphone Impedance / Connector		600 Ω (8-pin modular)
III. RECEIVER
Receiver System		Double conversion superheterodyne
Intermediate Frequencies (IFs)	1st IF	46.35 MHz
Intermediate Frequencies (IFs)	2nd IF	450 KHz
Sensitivity	(at 12 dB SINAD)	Less than 0.18 μV
Selectivity (Wide)	at -6 dB	More than 6 kHz
Selectivity (Wide)	at -60 dB	Less than 14 kHz
Selectivity (Narrow)	at -6 dB	More than 3 kHz
Selectivity (Narrow)	at -55 dB	Less than 9 kHz
Spurious Response / Image Rejection		More than 60 dB
Audio Output Power	(10% dist., 4 Ω load)	4.5 W typ.
External Speaker Connector		2-conductor 3.5 (d) mm (1/8ʺ) / 4 Ω
