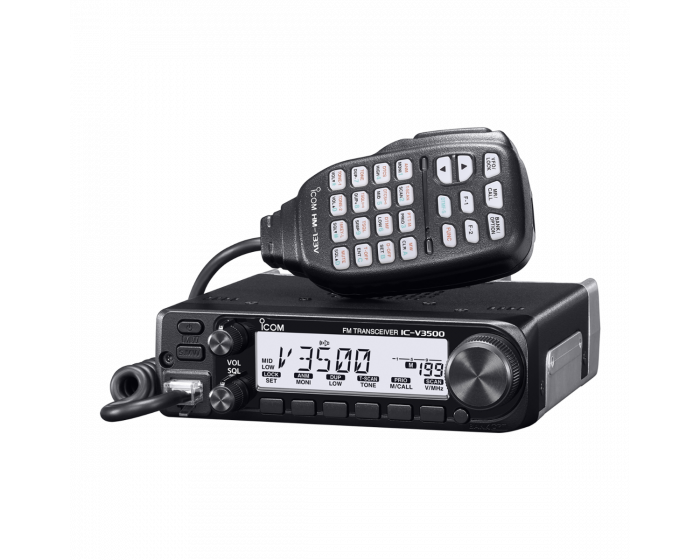

Icom IC-V3500 144 MHz FM Transceiver - Go Farther Away - Get Louder Audio
Click HERE to download the Icom IC-V3500 brochure
65W Powerful RF Output Power
The Icom IC-V3500 is a rugged 2M mobile transceiver that provides a powerful 65W of output power. Its large heatsink maintains stable output even during continuous transmission.
Modern White Display and Simple Operation
While the IC-V3500 retains a simple user interface despite additional function updates for an easy to use radio. The white LCD backlight offers a better readability suitable for mobile operation. The bottom of the display indicates the available functions of the front panel buttons directly below the display.
4.5W Loud and Clear Audio Output
The IC-V3500 provides class-leading 4.5 W loud audio from the built-in speaker. By improving the frequency response of the speaker and increasing opening slit, the voice is clearly audible and easy to hear.
Instant Volume Loud and Mute Functions
You can temporarily change the volume to a preset level with a simple operation. It can be used as a One-touch mute function by preset volume to zero.
Emergency Call and Alert Functions
In the case of emergency, the emergency call function alternatively sends an emergency beep and hot microphone audio to let the receiver to know that an emergency has occurred. At the same time, an emergency alarm sounds from the IC-V3500 speaker to notify the people around you of your existence and situation.
And More...
A total of 207 memory channels with 6 character channel name
VHF marine channel mode and foghorn functions* (* Depending on version)
Built-in CTCSS and DTCS encoder/decoder for repeater access
Dynamic bank link scan function scans all memory channels in the selected banks
Tough construction to pass the MIL-STD 810 G specifications
Up to 16 DTMF autodial memory channels
Free download PC programming software, CS-V3500
Priority watch function
Wide/narrow channel setting
Power supply voltage display
Most of functions are programmable from remote-control microphone
| General | |
| Frequency Coverage | 136 - 174 MHz (working range) | 144 - 148 MHz (Guaranteed range) |
| Number of memory channels | 207 channels (including 1 call and 6 scan edges) |
| Type of emission | F2D, F3E (FM) |
| Frequency stability | ±3 ppm |
| Power supply requirement | 13.8V DC ±15% |
| Current drain (approximate) | TX 65W = 11A | Rx Max audio = 1.5A | Stand-by = 0.4A |
| Antenna impedance | 50Ω (SO-239) |
| Operating temperature range | -10°C to +60°C |
| Dimensions (W x H x D; Projections not included) | 140 x 40 x 118 mm |
| Weight (approximate) | 2.43lb |
| Transmitter | |
| Output Power (13.8 V DC) | 65W, 25W, 10W, 5W |
| Max frequency deviation | ±5.0 kHz/±2.5kHz (W/N) |
| Spurious emissions | Less than -60dBc |
| Microphone impedance | 600Ω (8-pin modular) |
| Receiver | |
| Sensitivity (at 12 dB SINAD) | Less than 0.18 uV |
| Selectivity (WIDE) | More than 6 kHz (at 6dB) | Less than 14 kHz (at 60dB) |
| Selectivity (Narrow) | More than 3 kHz (at 6dB) | Less than 9 kHz (at 55dB) |
| Spurious response | More than 60 dB |
| Audio output power | 4.5W typ. (10% dist., 4 Ω load) |
| External speaker connector | 2-conductor 3.5 (d)mm (1/8")/4Ω |
Remote control hand mic
Mounting bracket kit
DC Power cable
Spare fuses
