Open Box MFJ-815D HF + 6M Peak Reading SWR/Wattmeter SN112954
• Covers 1.8-60MHz
• LED Backlighted lamp
• Large 3” Cross-Needle Meter
• True Active Peak Reading Circuit

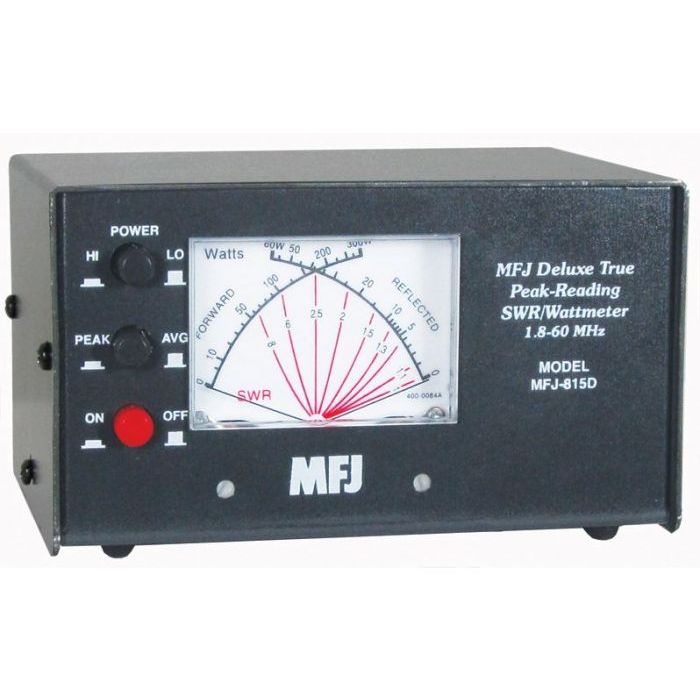

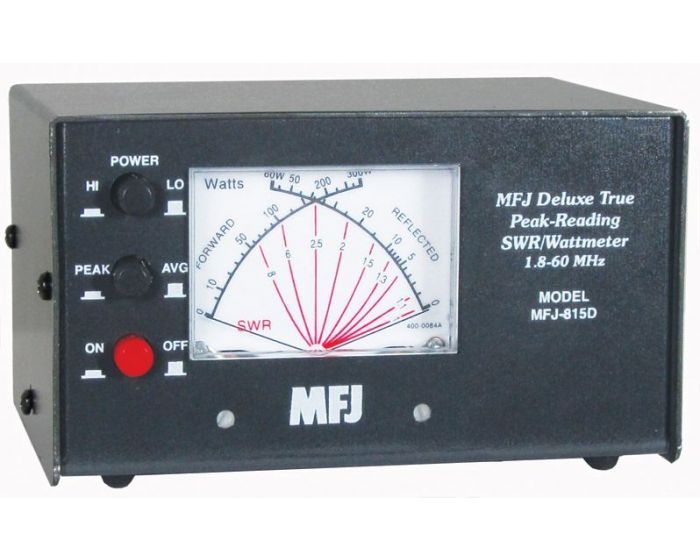

MFJ-815D reads true-peak or average power on a large illuminated three-inch Cross-Needle Meter.
Its TrueActive peak reading circuit gives you an incredibly accurate SWR and power reading in SSB and CWover a wide frequency range.
The Cross-Needle Meter reads SWR and true peak average, forward and reflected power simultaneously -- all in a single glance.
You get Frequency coverage from 1.8 to 60 MHz. Has mechanical adjustment for accurately zeroing the meter.
Push button selects range, meter lamp on/off and peak for SSB or average for CW operation. SO-239 Connectors.
MFJ-815D has 3000 and 300 Watts forward and 600/60 Watts reflected power ranges. Read SWR from 1:1 to 8:1.
LED Meter lamp uses 12 VDC or 110 VAC with optional MFJ-1312D.
TrueActive Peak Reading Circuit can use 9 Volt battery.
All metal black aluminum cabinet measures 6W x 3 1/2H x 4 1/2D inches.
