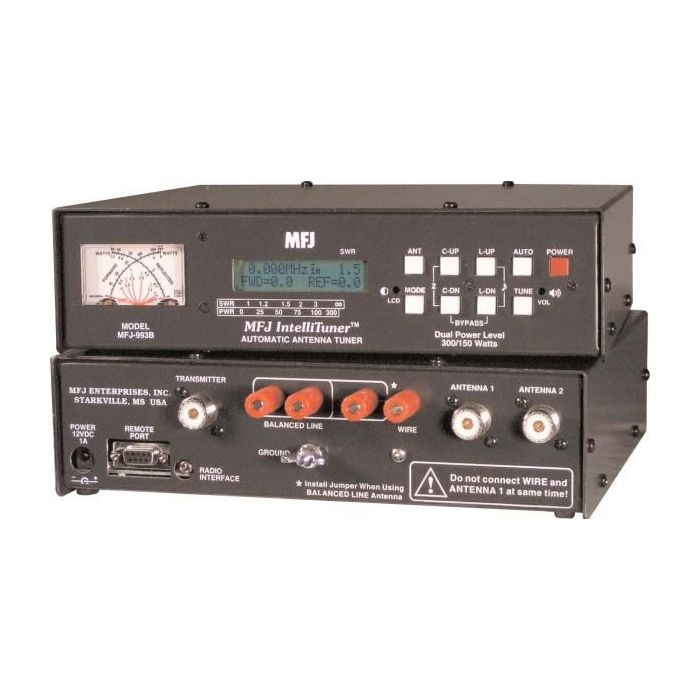

Dual 300/150 Watt "IntelliTuner" Automatic Antenna Tuner
The MFJ-993B IntelliTunerTM lets you tune any antenna automatically balanced or unbalanced -- ultra fast.
It’s a comprehensive automatic antenna tuning center complete with SWR/Watt-meter, antenna switch for two antennas and 4:1 current balun for balanced lines.
MFJs exclusive IntelliTunerTM, Adaptive SearchTM and InstantRecallTM algorithms give you ultra fast automatic tuning with over 20,000 VirtualAntennaTM Memories.
You get a highly efficient L-network, 6-1600 ohm matching at 300 Watts SSB/CW or extra-wide 6-3200 Ohm matching at 150 Watts SSB/CW, 1.8-30 MHz coverage, Cross-Needle and digital meters, audio SWR meter, backlit LCD, remote control port, radio interface, heavy-duty 16 amp/1000V relays.
It learns while you’re having fun
As you’re ragchewing, contesting or DXing, your MFJ-993B is learning! When you transmit, the MFJ-993B automatically tunes for minimum SWR and remembers your frequency and tuner settings. The next time you operate on that frequency and antenna, these tuner settings are instantly restored and you’re ready to operate in milliseconds!
MFJ new VirtualAntennaTM Memory system gives you 4 antenna memory banks for each of 2 antenna connectors. Select up to 4 antennas on each antenna connector. Each antenna has 2500 memories, 20,000 total.
Intelligent Ultra Fast Tuning
MFJs InstantRecallTM first checks its memory to see if you have operated this frequency before. If so, tuning is instantaneous and you re ready to operate. If not, MFJs IntelliTunerTM algorithm - - based on MFJ s famous SWR Analyzer technology - - kicks in. It measures the complex impedance of your antenna. Next, it calculates the components it needs and instantly snaps them in. Then, it fine tunes to minimize SWR -- you’re ready to operate. It’s all done in a fraction of a second.
When the impedance is within its measurement range, the MFJ-993B is the fastest automatic antenna tuner in the world.
If it can’t accurately determine impedance, MFJ’s AdaptiveSearchTM algorithm goes into action. Frequency is measured and relevant components values are determined. Only those values are searched for ultra-fast tuning.
For even faster searches, you can set the target SWR to 2 (settable 1.0-2.0). You can manually tune when you can’t transmit (for listening out of ham bands).
Cross Needle and Digital SWR/Watt Meters
Lighted Cross-Needle and digital meters lets you accurately read SWR, forward and reflected power at a glance.
An audio SWR meter lets you hear the tuned SWR when you can’t see/read meters.
Turn on a highly visible, instant response SWR LCD bargraph when you need it.
Backlit LCD Display
An easy-to-read backlit LCD displays SWR, forward/reflected power, frequency, antenna 1 or 2, L/C tuner values, on/off indicators and other information.
The MFJ-993B is a compact 10Wx2¾ Hx9D inches. Use 12 –15 VDC/1 amp or 110 VAC with MFJ-1316.
Tune Any Antenna
You can tune any antenna — dipoles, verticals, beams, phased arrays, inverted vees, quads, random wires, mobile antennas, compact limited space antennas.
A 4:1 true current balun lets you tune any balanced antenna - - horizontal loops, vertical loops, multi-band doublets, quads, folded dipoles, Zepps.
MFJ-993B Interface Pre-wired Cables
Allows automatic tuning of your MFJ-991B/993B/994B IntelliTuner through radio.
MFJ-5124I - ICOM. Supports IC-706, 707, 718, 725, 728, 736, 746, 756, 765, 775, others that support AH-3 or AH-4.
MFJ-5124A (*) ALINCO. Supports DX-70, DX-77 and others.
MFJ-5124K - KENWOOD. Supports TS-50S, 450S, 570S, 690S, 850S, 870S, 2000 and others that support AT-300.
MFJ-5124Y - YAESU. Supports FT-100D, FT-857, FT-897, others.
MFJ-5124Y3 - Supports YAESU FT-1000MP and compatibles
(*)=Special Order only.
