Open Box Yaesu ATAS-120A SN77375

$309.00
Open Box Yaesu ATAS-120A SN77375 SKU: ZUS-1728

$309.00

Free Shipping!

Sold Out!

Check Store Stock

Huntsville Store:

Las Vegas:

Comments: Open Box ATAS120A SN77375. All items included. Box is in good condition but has been retaped.

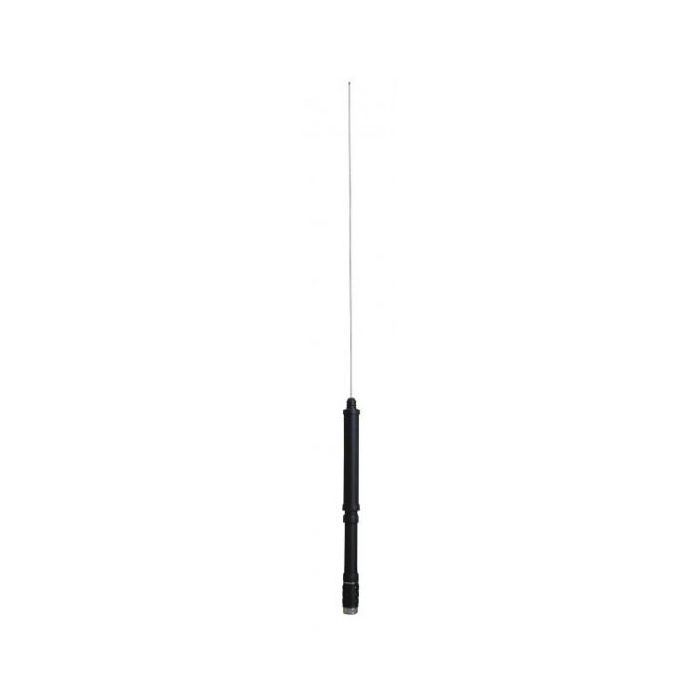

Motorized Mobile Antenna: 40m through 70cm

The ATAS-120A is a unique mobile antenna designed for use with Yaesu transceivers equipped with the proper controller, such as the FT-897D, FT-847, FT-857D, and FT-100/100D. The ATAS-120A uses a motorized tuning system which resonates the radiating element for the lowest SWR without the need for expensive inconvenient monoband whip assemblies.
The ATAS-120A is designed to mount directly onto a standard mobile antenna mount with a SO-239 connector (not included).
**Not recommended for use with a magnet mount**

For use with the 144 and 440 MHz bands, you may need to purchase a duplexer (FT-897/857/FT-100) or a triplexer (FT-847) to properly connect the antenna to the appropriate antenna jacks on the radio.

For further technical assistance contact the Yaesu Tech Support at 714-827-7600

Yaesu PDF faq sheet.

Specifications ATAS-120A
Frequency Range 7/14/21/28/50/144/430MHz Amateur Bands
Input Impedance 50 Ω
Max Input Power 120W 7/14/21MHz (SSB, CW; 50% duty cycle)
100W 28MHz, 50MHz, (FM & RTTY)
50W 144/430MHz, (SSB, CW, FM, RTTY)

Matched SWR Less than 2.0:1
Height (approx) 55.11 to 63 inches, depending on frequency selected
Weight (lbs) 2
