Open Box Yaesu FC-40 Automatic Antenna Tuner S/N:0C890066

Open Box Yaesu FC-40 Automatic Antenna Tuner S/N:0C890066

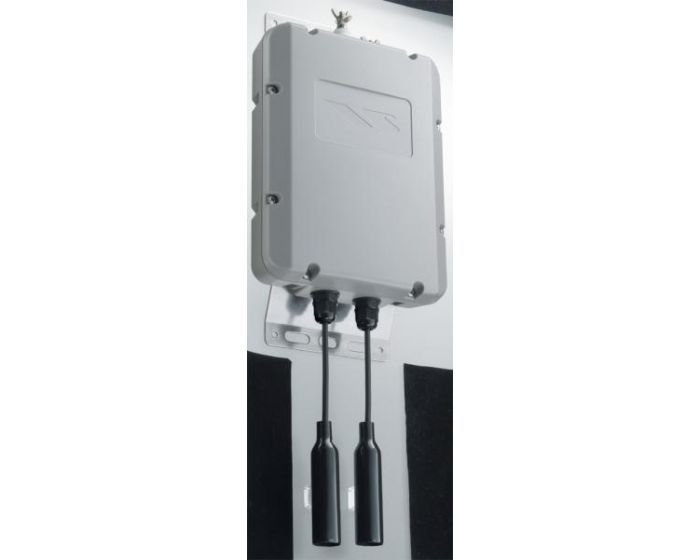

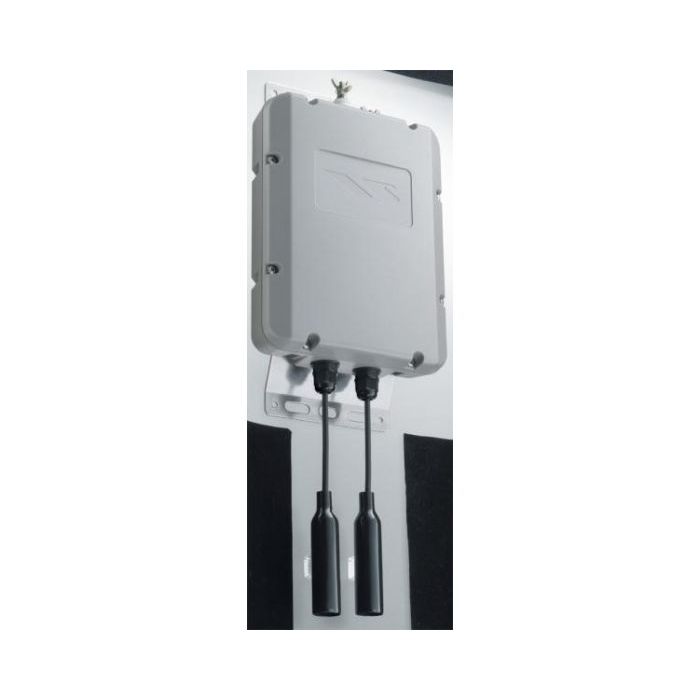

The FC-40 is a new, wide-range Antenna Coupler for the FT-450, FT-857, and FT-897 Series of Transceivers.

The FC-40 is a microprocessor-controlled antenna impedance matching network designed for use with all versions (original and “D”) of the FT-450, FT-857, and FT-897 HF/VHF/UHF Transceivers. The FC-40 makes use of control circuitry inside the transceiver, allowing the operator to monitor and control operation of the FC-40, which mounts near the antenna feed point. Fully waterproof, the FC-40 may be mounted outdoors in exposed locations, and will handle a 100 Watts of transmitter power.

The FC-40 is designed for operation on 7 ~ 54 MHz, when using an 8’ whip like the YAESU YA-007, or on 1.8 ~ 54 MHz when used with a random-length wire longer than 66’. Matching time is typically five seconds or less, and the required drive power is 4 ~ 60 Watts. The FC-40 sports a whopping 200 match-setting-point memories, for instant recall of the tuning settings.
