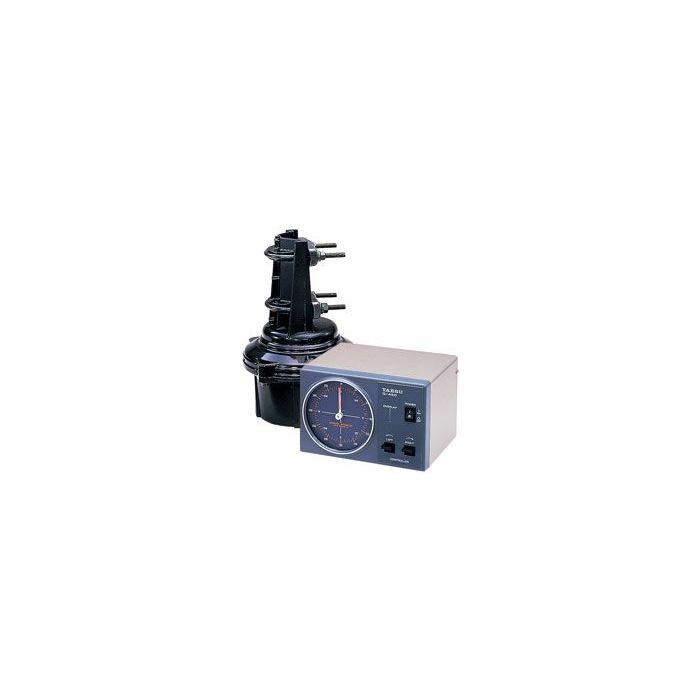

Open Box Yaesu G-450A Rotor with Control Box S/N9C280125

Name: Open Box Yaesu G-450A Rotor with Control Box S/N9C280125
Brand: Yaesu
SKU: ZUS-2948
Price: 259 USD
Availability: OutOfStock

SKU: ZUS-2948

Availability:

Out of stock

Sold Out!

Available New

This is a used or open-box unit. The same product is also available new.

Yaesu G-450A Light Duty - 360 DG 10 SQ. FT. $429.95 In stock

Description

Only registered users can write reviews. Please Sign in or create an account

Power Supply Voltage:	117 VAC, 50-60 Hz
Power Supply Current Consumption:	0.5 Amps
Rotor Voltage:	24 VAC
Cable Conductors Required:	6
360° Rotation Time (Non Loaded):	63 seconds at 50 Hz
0	51 seconds at 60 Hz
Rotation Range:	450°
Rotation Torque:	43 ft-lbs
Braking Torque:	217 ft-lbs
Maximum Vertical Load:	242 Lbs. (100 kg) Continuous
	660 Lbs. (300 kg) Instantaneous
Mast Outside Diameter:	1.25 - 2.5 inches (32 to 63mm)
Braking Type:	Mechanical stopper
Antenna K Coefficient:	100 or less
Wind Loading Area: (Pole Type)	0.5 m2 or less
(Tower Type)	1.0 m2 or less
Maximum Continuous Duty:	3 minutes
Operating Temperature Range:	0°C to +40°C (Controller)
0	-20°C to +40°C (Rotator)
Rotator Dimension:	7.32 x 10.35 inches
Rotator Weight:	7.71 lbs
Controller Dimension (WHD):	7.48 x 4.92 x 5.90 inches
Controller Weight:	5.95 lbs
