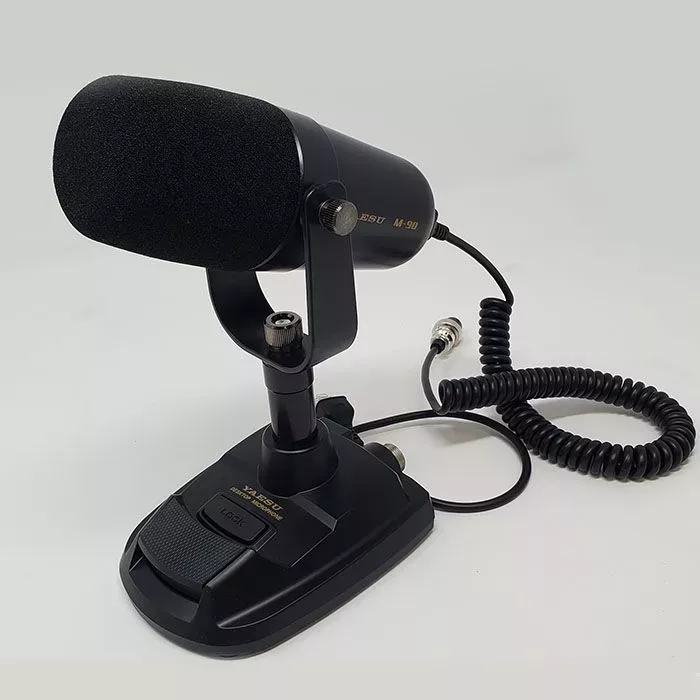

Open Box Yaesu M-90D Dynamic Desktop Microphone

Open Box Yaesu M-90D Dynamic Desktop Microphone

Yaesu’s newest desktop microphone utilizes a dynamic microphone element that is finely tuned to deliver rich low to mid-frequency response desirable for a clear and concise conversation. Using a windscreen cover and a directional microphone element, the structure of the microphone of the M-90D and M-90MS is designed to concentrate voice input from the front while reducing ambient noise from the side.

Built-in Low-Cut filter creates clear and crisp audio characteristics by shaping the low-frequency response (cut off at 340Hz, -6dB/octave). An isolation transformer is integrated into the circuit board in order to enhance the audio quality. The PTT of the M-90D uses three Air-Cylinder tubes similar to the Reference Microphone M-1. This provides solid and smooth extended operation. A simple one-touch PTT keylock button is placed directly above the PTT key for those long rag chews.

The M-90D and M-90MS are compatible with all YAESU HF transceivers equipped with the round 8-pin microphone connector or the 8-pin modular microphone connector.

We believe that the M-90D and M-90MS will have a positive impact on your transceiver’s performance.

NOTE: The SCU-67 adapter cable is required to use this microphone with Yaesu mobile VHF/UHF transceivers.
