Open Box Yaesu WiRES-X FT2DR Portable Node Station Cable Kit SN112610
Yaesu WiRES-X FT2DR Portable Node Station Cable Kit
Yaesu is very excited to announce that the firmware update for the FT2DR, along with the latest WiRES-X PC Software (V1.50), has been released on our official website (www.yaesu.com). This update will now enable the FT2DR to work as a WiRES-X Portable Node Station with the following firmware and the WiRES-X software:
- FT2D MAIN FW V3.10 - FT2D DSP FW V4.31 - WiRES-X PC Software V1.50

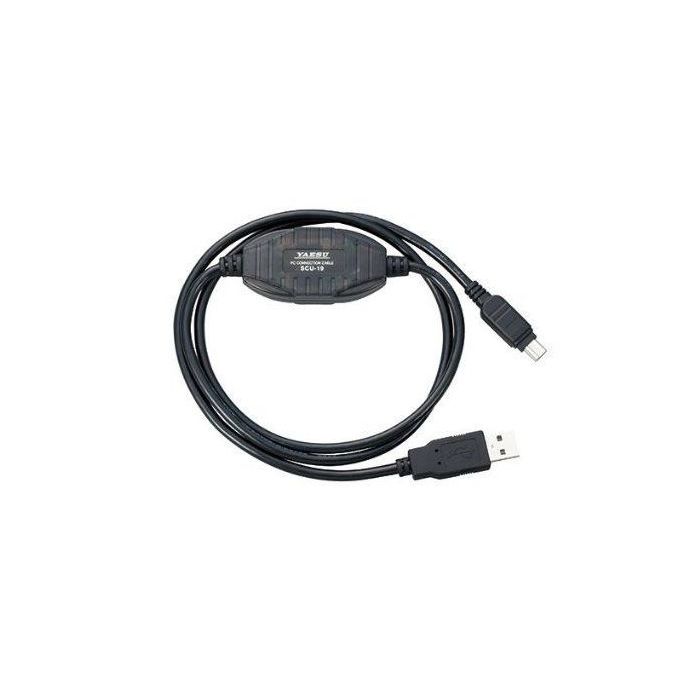

To set up a Portable Digital Node Station with the FT2DR, the SCU-39 WiRES-X connection cable kit accessory is required.
Users can now easily establish and operate a WiRES-X Portable Node Station by directly connecting the FT2DR to the PC with the SCU-39. The conventional HRI-200 internet interface kit is no longer required for the Portable Digital Node function, and no fixed or dynamic global IP address is necessary. Since users do not need to open an Ethernet port, the WiRES-X communication from any location is possible: such as Hotel rooms, Airports, Vehicle Wi-Fi, or even Wi-Fi Access Points.
With this new Portable Digital Node Function, users can gain access to WiRES-X Network directly by using the USB connected FT2DR with the radios PTT and microphone. The need to have an additional radio to talk to a node radio is no longer needed in order to enjoy the WiRES-X Network. The USB connected FT2DR/E can also function as an Access Point for RF communication. Four different types of operation modes are available. For more information, please refer to the operation manual which is posted on our official website (www.yaesu.com).
Exciting new features of WiRES-X PC Software (V1.50) includes the following two updates:
•Sub-code Function: When selecting DG-ID ‘00’ in the WiRES-X software (under the transceiver settings) you can select a Sub-code from “00” to “26”. When the DG-ID and sub-code are set to “00,” the node relays C4FM digital signals of all DG-ID numbers. When a sub-code is set with a value of “01” – “26,” the node relays C4FM digital signals with the sub-code that is matched. This will allow multiple open nodes (DG-ID ‘00’) to work within the same communication range; this function is useful to avoid interference between nodes.
•Digital Only Room: A Digital Room can be set up if desired with the WiRES-X PC Software V1.50 (Note: The HRI-200 is needed in order to create a room.)
With the Portable Digital Node function, the flexibility and mobility of the WiRES-X Network will be available all the time. Firmware updates will be released soon that will make it possible for the FTM-400XDR and FTM-100DR transceivers to function as a Portable Digital Node. We believe that this new WiRES-X functionality will contribute to the growth of the YAESU C4FM (System Fusion) network.
