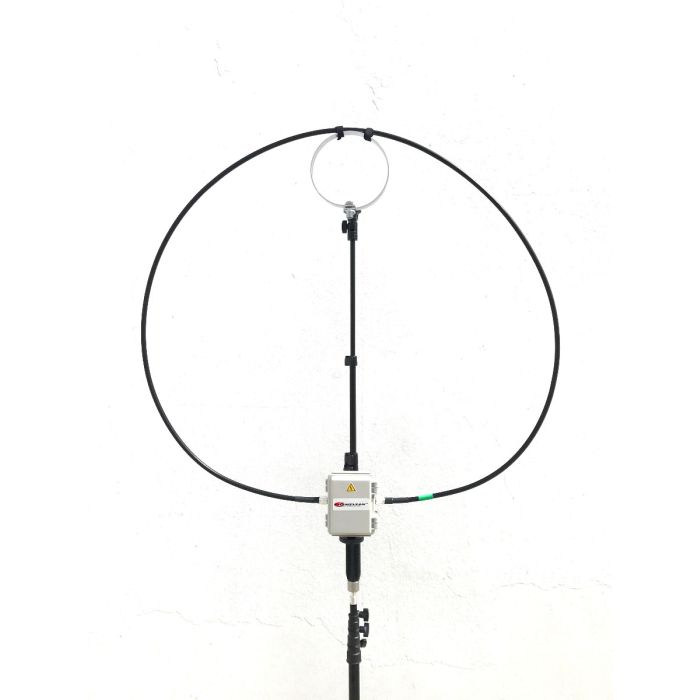

The CHA P-LOOP 2.0 was designed with portability, ease of use simplicity, ruggedness and high performance in mind. Unlike any other similar antennas on the market, the CHA P-LOOP 2.0 is made with premium materials that are precisely manufactured and assembled in the USA!
This is an exciting new product from Chameleon Antenna. Easily deployable HF magnetic loop antennas, also called small transmitting loops, have been routinely used for many years in military, diplomatic, and shipboard HF communication links, where robust and reliable general coverage radio communication is a necessity.
These antennas have only recently become commercially available for amateur radio. The real practical advantage of the small loop, compared to a short vertical whip tuned against earth or a full sized vertical antenna, is the loop’s freedom from dependence on a ground plane and earth for achieving efficient operation; this unique characteristic has profound significance for portable or restricted space antennas.
In comparison, the bottom of a vertically oriented loop does not need to be more than a loop diameter above ground, making it very easy to install in a restricted space location. There is no significant improvement in sky wave propagation performance when a small loop is installed high; all that matters is the loop is substantially clear of objects in the immediate area and oriented towards the desired direction of radiation.
The magnetic loop is different from typical antennas because it emphasizes the magnetic part of the radio wave (H field) rather than the electric part (E field) of the radio wave. It also has a high Q resonance of around 15 KHz on 40 meters, providing immunity from interference outside the bandpass.
The new CHA P-LOOP 2.0 is more rugged, lighter weight, and more weather resistant than previous versions and using the optional power compensator, can handle higher power. We’re sure you will be amazed by the performance and agree that the CHA P-LOOP 2.0 is the most advanced portable magnetic loop antenna available today.
The crimp PL-259 connectors that we're using with all our RG-58 are UHF-7604L connectors from PAN-PACIFIC. They're the best and the leader in the industry.
- There is no need for soldering; therefore, installation time is reduced.
- It takes an experienced technician about 15 seconds to install a crimp-crimp connector, thereby greatly reducing the time required to create cable assemblies. This is very important in today's cabling market where time is of the essence and fewer technicians are being asked to maintain more and more equipment. Digital video, computer and network cabling is almost universally crimped today.
- Crimped connections, done correctly, can be superior to soldered connections.
- A good crimped connection deforms the metal sufficiently past the yield point, but not too much, so that the "spring back" keeps the connection secure, even under thermal cycling (the coefficient of expansion of the two metals might be different) and vibration.
- A good crimp connection is gas tight and won't wick: it is sometimes referred to as a "cold weld".
- Like the solder method, it can be used on solid or stranded conductors, and provides a good mechanical and electrical connection.
- 7.0 MHz to 30.0 MHz (40 - 10 meter ham bands)
- Power handling: 10W CW or 25W SSB
- The CHA P-LOOP 2.0 is weather resistant to dripping water when mounted near vertically.
- The tuning box is equipped with a Picatinny rail for easy assembling of the unit.
- Proprietary solderless aluminum coupling loop. This coupling loop design can be used with any types of coax cable feed-lines. Because of its rigidity, the antenna tuning will remain stable, consistent and will prevent SWR fluctuations due to usual coupling loop deformation.
- The three sections collapsible portable mast allows easy storage, fast deployment and ease of use in all conditions. No need to play with multiple tubular PVC sections to assemble the antenna.
- The rubberized handle at the bottom insures a great antenna grip and an easy thumb tuning when operating the antenna handheld.
- The bottom of the telescopic mast is equipped with a stainless steel 1/4-20 threaded hole for easy tripod installation.
- The 12’ RG-58 with integrated RFI choke feed-line decouples the coupling loop from the radio which is essential to prevent SWR fluctuation while rotating the antenna or moving the coax cable around.
- Our custom made capacitors which are equipped with a 6:1 reducer, offer a smooth and consistent tuning while providing the highest efficient performance on the market.
- The cotton canvas classic military messenger bag offers easy storage, transportation and protection for the unit.
- The unit is now equipped with a NEW larger Delrin tuning knob for smoother tuning and operation.
- A 48" diameter BOOSTER KIT for 15M to 40M can be purchased separately.The base of the tuning unit is equipped with an aluminum anodized base plate. That base plate can be placed directly on a flat surface or can be mounted on a tripod (14-20 thread or 3/8 through hole for CHA JAWMOUNT installation).
The antenna system consists of:
1 X CHA P-LOOP 2.0 water resistant tuning box
1 X Stainless Steel base adapter 1/4”-20
1 X LMR-400 coax cable radiator
1 X Power Compensator (optional)
1 X 12’ with integrated RFI choke feed-line
1 X 100% Cotton canvas classic military messenger bag
1 X Proprietary coupling loop
1 X Folding Tripod
1 X User guide
