Polyphaser IS-B50HN-C2

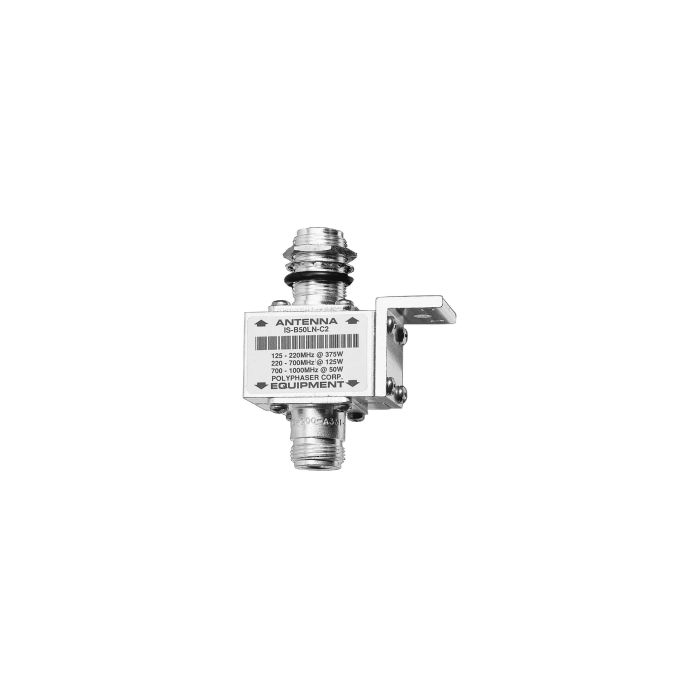

PolyPhaser IS-B50HN-C2 Bulkhead Arrestor, N-Type, Female to Female

Bulkhead mounting coaxial protectors attach through a panel of maximum 1/4" thickness. Device is DC blocked to stop DC continuity and accommodate all equipment types. Handles 50 kA max. surge current. Turn on voltage is a nominal 600V for L series models and 1200V for H series. Device turns on 2.5ns (L series) or 7ns (H series) after reaching DC threshold. Multi-strike capability. Aluminum enclosure and stainless steel hardware. Choose the protector which has the lowest throughput energy for the desired frequency.

Specifications:

Freq. Range: 125-1000MHz

Throughput Energy: 800 uJ

Conn. Equip. Side: N Female

Conn. Ant. Side: N Female

Maximum Power @ Frequency: 125-220@500W 220-700@250W 800-1000@125W

Mfg. Warranty: 10 Years
