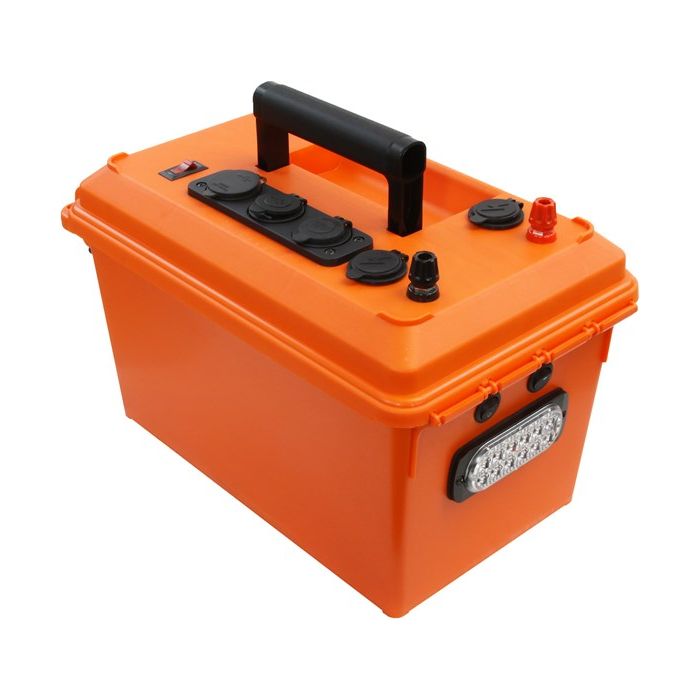

Portable Power Box for 30-70Ah Bioenno Batteries
Applications:
Charging smartphones, tablets, radios and computers
Powering two-way radios and DC powered electronics
Emergency and Off Grid portable power
Portable power for telescope accessories
Features:
Bright safety orange colored box
Built-in LED worklight and emergency strobe with user selectable flash patterns
DC Power up to 40 amps total
Main on/off 15A backlit circuit breaker switch to turn your devices on/off and stop parasitic loads:
(1) USB type-C fast charging port
(3) Fast USB charging ports with cover (5V @ 2.4A per port)
Battery status blue digital volt meter
- Automotive 12V socket with cover (15A maximum)
-
High current DC outputs (non-switched):
(4) Anderson Powerpole connectors with cover
Heavy duty M6 binding posts accepts 1/4" ring terminals, banana plugs or bare wire
Battery is protected with an inline 40A ATO blade fuse
Specifications:

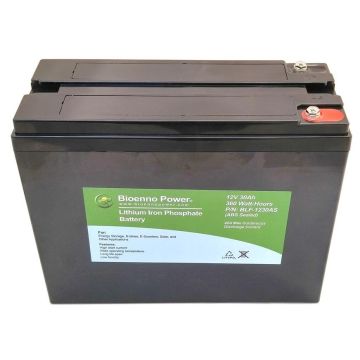

Available Bioenno LiFePO4 Battery Options: BLF-1270A (70Ah), BLF-1260 (60Ah), BLF-1250A (50Ah), BLF-1240A (40Ah), BLF-1230A (30Ah)
Battery Connection: SB50 Gray Anderson Powerpole Connector and (with 40A inline fuse)
Maximum Peak Discharge: 40 Amps
Nominal Battery Voltage: 12VDC
Exterior Dimensions (including binding posts): 9.75 in. H x 9.125 in. W x 15.125 in. L (247.7 mm x 237.8 mm x 384.2 mm)
Maximum Interior Dimensions: 6.5 in. H x 6.375 in. W x 11.5 in. L (165.1 mm x 161.9 mm x 292.1 mm). Additional height and length are available in limited areas due to the shape of the lid and wire harnesses, up to 7.5 in. H (190.5 mm) and up to 12.5 in. L (317.5 mm).
