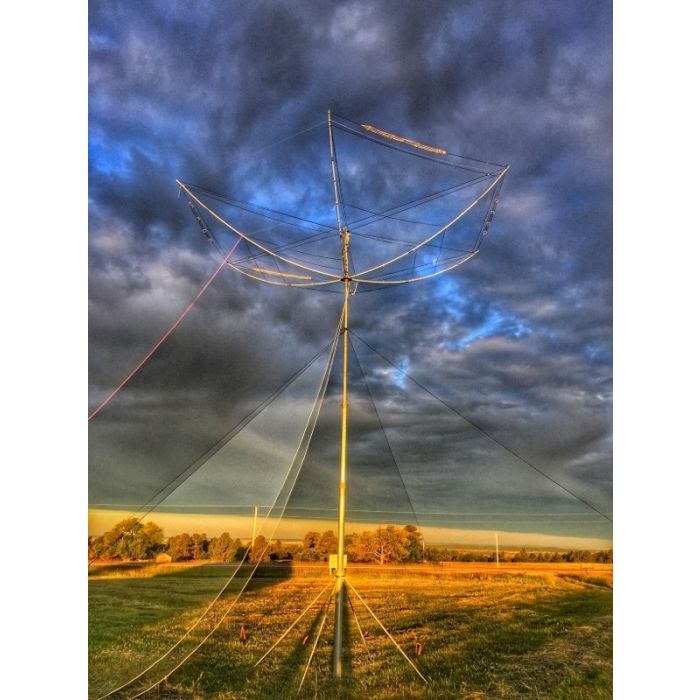

RadioWavz Sentinel Hex Beam 40-6M Multi-Band Antenna

The Sentinel Hex Beam is a  directional antenna that provides great performance and reduced size.

This broad band hexagonal beam for 40, 20,15,10,6 meters is constructed of six fiberglass arms and insulated stranded copper wire.

The Sentinel series single band hex beam consists of two elements. The driven element is in the shape of an “W” and the reflector element is wrapped around the four spreaders to the back. The elements, insted of using tubes we use wire.  This reduces the need for a heavy supporting structure. The supporting structure consists of six flexible fiberglass arms attached to a base. The arms form a hexagonal shape hence the name "hexagonal beam".

Features:

  • Mulit Bands
  • Low SWR
  • No tuning required, just plug and play
  • Improved broad band response over original hex beam design
  • Performs well at lower heights
  • Handles full legal limit of power
  • Small physical foot print
  • Light enough for a push up mast
  • Symmetrical shape withstands wind better
Specifications

  • Gain Peak Approx 5.5 dBi
  • Front/Back Peak > 20dB
  • VSWR Less than 2:1 across nearly all bands
  • Turn Radius 11 Ft
  • Diameter of Beam 22 Ft
  • Height of Beam 36" from base to top of center post
  • Weight 15 lbs
  • Wind Load Area < 4 sq ft
  • Power Handles full legal limit


RadioWavz Sentinel Hex Beam 40-6M Multi-Band Antenna

Features:

  • Mulit Bands
  • Low SWR
  • No tuning required, just plug and play
  • Improved broad band response over original hex beam design
  • Performs well at lower heights
  • Handles full legal limit of power
  • Small physical foot print
  • Light enough for a push up mast
  • Symmetrical shape withstands wind better
Specifications

  • Gain Peak Approx 5.5 dBi
  • Front/Back Peak > 20dB
  • VSWR Less than 2:1 across nearly all bands
  • Turn Radius 11 Ft
  • Diameter of Beam 22 Ft
  • Height of Beam 36" from base to top of center post
  • Weight 15 lbs
  • Wind Load Area < 4 sq ft
  • Power Handles full legal limit
