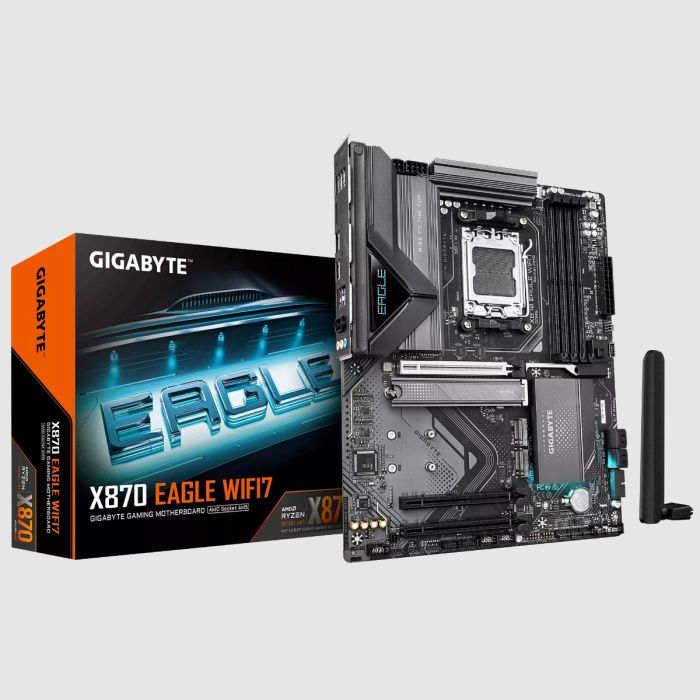

Refurbished Gigabyte X870 EAGLE WIFI7 ATX DDR5 AM5 Motherboard

Name: Refurbished Gigabyte X870 EAGLE WIFI7 ATX DDR5 AM5 Motherboard
Brand: Gigabyte
SKU: US2261
Price: 207.29 USD
Availability: OutOfStock

SKU: US2261

Availability:

Out of stock

No longer available.

Description

Specifications

Includes

Feature	Value
CPU	AMD Socket AM5, Support for AMD Ryzen™ 9000/8000/7000 Series Processors (See GIGABYTE website for latest CPU support list)
Chipset	AMD X870
Memory	Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXPO™ and XMP memory modules (CPU and memory configuration may affect supported memory types, data rate, and number of DRAM modules. Refer to GIGABYTE's "Memory Support List".)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller: 2 x USB4® USB Type-C® ports (USB4 and DisplayPort video outputs, max 3840x2160@240 Hz, DisplayPort 1.4 and HDR support) Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x HDMI port (max 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, and HDR support, native HDMI 2.1 TMDS compatible) (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (7.1-channel requires audio software configuration)
LAN	Realtek® 2.5GbE LAN chip (2.5/1 Gbps/100 Mbps)
Wireless Communication Module	MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) / Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1): 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, BLUETOOTH 5.4, 11be 160MHz support (Actual data rate may vary. Wi-Fi 7 requires Windows 11 SV3. 6 GHz availability depends on local regulations.)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16, CPU integrated): AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x16 AMD Ryzen™ 8000 Series-Phoenix 1: PCIe 4.0 x8 AMD Ryzen™ 8000 Series-Phoenix 2: PCIe 4.0 x4 Chipset: 2 x PCI Express x16 slots (PCIe 3.0 x1) (PCIEX16 supports graphics card or NVMe SSD. Install graphics card in PCIEX16 if only one is used.)
Storage Interface	1 x M.2 (M2A_CPU, CPU integrated, Socket 3, M key, 25110/22110/2580/2280): AMD Ryzen™ 9000/7000 Series: PCIe 5.0 x4/x2 AMD Ryzen™ 8000 Series: PCIe 4.0 x4/x2 2 x M.2 (M2C_SB/M2B_SB, Chipset integrated, Socket 3, M key, 25110/22110/2580/2280, PCIe 4.0 x2/x4; M2B_SB operates at x2 when a PCIe SSD is in M2C_SB) 4 x SATA 6Gb/s connectors RAID 0/1/5/10 support for NVMe SSDs (RAID 5 only on Ryzen™ 9000 Series) RAID 0/1/10 support for SATA storage devices
USB	CPU + ASMedia USB4® controller: 2 x USB4® Type-C® (rear) CPU: 1 x USB 3.2 Gen 2 Type-A (rear, red), 1 x USB 3.2 Gen 1 (rear) CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 (rear) Chipset: 1 x USB Type-C® (internal header, USB 3.2 Gen 2x2), 4 x USB 3.2 Gen 1 (2 rear, 2 internal header), 4 x USB 2.0/1.1 (internal headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 3 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	1 x Q-Flash Plus button 2 x antenna connectors (2T2R) 1 x HDMI port* 2 x USB4® USB Type-C® ports (DisplayPort) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage/Temperature/Fan speed/Water cooling flow rate detection, Fan fail warning, Fan speed control (Fan/pump speed control depends on installed fan/pump)
BIOS	1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,
Unique Features	Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
