Refurbished Hytera PD-362UC SN16O10D1117

$159.00
Refurbished Hytera PD-362UC SN16O10D1117 SKU: ZUS-1885

$159.00

SOLD!

Check Store Stock

Huntsville Store:

Las Vegas:

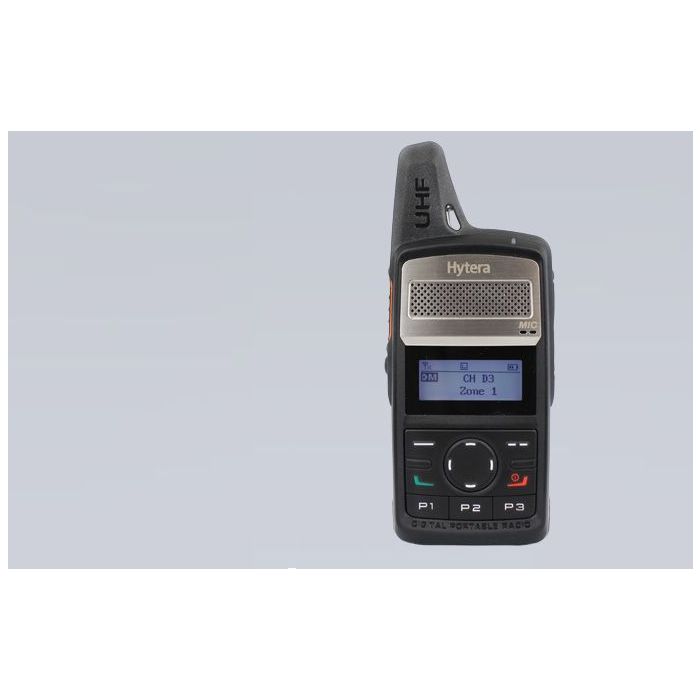

Refurbished PD362UC SN16O10D1117

Hytera PD362 DMR HT UHF Radio, 430-470MHZ, 256 channel, 3W, IP54

Pocket-Size DIgital Handheld Radio

The Hytera PD362 is an open-standard DMR radio capable of providing quality voice communication in a small pocket-sized design approved to IP54 and MIL-STD 810 testing. The 2000 mAh long lasting battery yields approximately 12 hours under a 5-5-90 duty cycle in digital mode.

FAQ:

Q. Where can I download programming software?

A. Programming software can be downloaded at www.gigaparts.com/downloads

This radio can be enabled for wideband FM if it is purchased by a licensed amateur operator. After you purchase the radio, send an email to [email protected] requesting this feature and we will email a program to you that will allow the Hytera CPS software on your computer to enable those features for your serial number. This process is controlled by the radio’s model number and serial number and only works on Hytera radios sold by GigaParts. Please provide your amateur radio call sign in the email request.

Hytera PD362 DMR HT UHF Radio, 430-470MHZ, 256 channel, 3W, IP54

Pocket Size Design
The color display allows good visibility even under extremely strong light. The compact antenna design and light weight PC & Metal frame design. The PD362 is 4.84 x 2.17 x 0.91 inches weighing 5.64oz.

Micro USB Port
The Micro USB port allows you to use a standard USB to Micro USB to charge the radio.

Compact Antenna
The creative and compact antenna design makes the PD362 sleek and gives it a cellular phone feel.

Dual Mode: Analog & Digital
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.

One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.

Simple Scan
Capable of scanning of analog voice/signaling or Digital voice/data.

Versatile Voice Calls
The intelligent signaling supports various voice call types, including Private Call, Group Call , and All Call.

Various Analog Signaling Types
Various analog signaling types various squelch control types (CTCSS / CDCSS), thus providing higher function expansion capacity to the analog world.

Monochrome Display
Two line display with monochrome color and supports messaging with up to 64 characters.

Frequency range UHF: 430 - 470 MHz
Channel capacity 256 (128 Analog / 128 Digital)
Zone capacity 16
Channel spacing 12.5/25 kHz
Operating voltage 3.7 V
Battery 2000 mAh Li-Ion
Battery service life (5/5/90) approx. 10 h (analog)
approx. 12 h (digital)
Frequency stability ±0.5 ppm
Antenna impedance 50 Ω
Dimensions (H×W×D) 4.84 x 2.17 x 0.91 Inches
Weight 5.64 oz

Transmitter
RF Power Output UHF: 1.5 / 3 W
FM Modulation
(Analog Emissions Designator)
11 K0F3E at 12.5 kHz
16 K0F3E at 25 kHz
4FSK Digital Modulation
(Digital Emissions Designator)
12.5 kHz (data only): 7K60FXD
12.5 kHz (voice & data): 7K60FXW
Conducted/Radiated Emission -36 dBm < 1 GHz
-30 dBm > 1 GHz
Modulation limiting ±2.5 kHz at 12.5 kHz
±5.0 kHz at 25 kHz
FM Hum & Noise 40 dB at 12.5 kHz
45 dB at 25 kHz
Adjacent channel selectivity 60 dB at 12.5 kHz
70 dB at 25 kHz
Audio Response +1 dB to -3 dB
Audio Distortion ≤ 3%
Digital vocoder type AMBE++ or SELP

Receiver
Sensitivity (analogue) 0.22 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD)
0.4 μV (20 dB SINAD)
Sensitivity (digital) 0.22 μV / BER 5%
Adjacent channel selectivity
TIA-603
ETSI

60 dB at 12.5 kHz / 70 dB at 25 kHz
60 dB at 12.5 kHz / 70 dB at 25 kHz
Intermodulation
TIA-603
ETSI

70 dB at 12.5/25 kHz
70 dB at 12.5/25 kHz
Spurious response rejection
TIA-603
ETSI

70 dB at 12,5/25 kHz
70 dB at 12.5/25 kHz
Spurious response rejection 40 dB at 12.5 kHz
45 dB at 25 kHz
Nominal audio power output 0.4 W
Nominal audio distortion ≤ 5 %
Audio sensitivity +1 dB to -3 dB
Conducted spurious emission < -57 dBm

Environmental Specs
Operating temperature range -30 °C to +60 °C
Storage temperature range -40 °C to +85 °C
ESD IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge)
Protection against dust and moisture IP54
Shock and vibration resistance MIL-STD-810 C/D/E/F/G
Relative humidity MIL-STD-810 C/D/E/F/G
