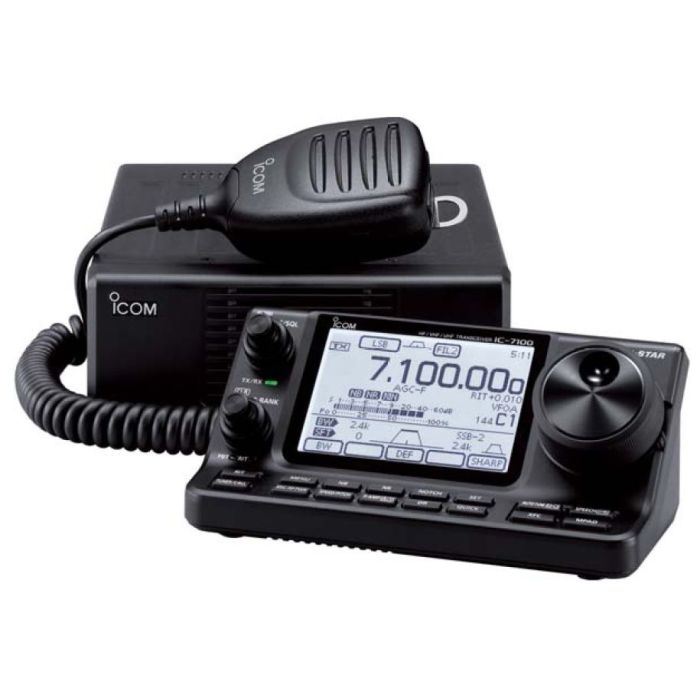

| I. GENERAL |
| Frequency Coverage*¹ |
Receiver |
0.030–199.999 MHz
400.000–470.000 MHz |
| Transmit |
1.800–1.999 MHz
3.500–3.999 MHz
5.255–5.405 MHz*¹
7.000–7.300 MHz
10.100–10.150 MHz
14.000–14.350 MHz
18.068–18.168 MHz
21.000–21.450 MHz
24.890–24.990 MHz
28.000–29.700 MHz
50.000–54.000 MHz
144.000–148.000 MHz
430.000–450.000 MHz |
| Mode |
All Mode |
USB, LSB, CW, RTTY, AM, DV, FM, WFM (Rx only) |
| No. of Memory Channels |
Total |
495 regular, 4 call, 6 scan edges, 900 D-STAR repeater channels |
| Antenna Connector |
Type / Impedance |
SO-239 × 2 (one each for HF/50MHz and 144/430/440MHz, 50Ω) |
| Operating Temp. Range |
 |
–10°C to +60°C; +14°F to +140°F |
| Frequency Stability |
 |
±0.5 ppm (0°C to +50°C @ 430MHz) |
| Power Supply Requirement |
DC Input |
13.8V DC ±15% |
| Current Drain (at 13.8V DC) |
Tx (Max. power) |
22A (HF/50MHz) / 16A (144/440MHz) |
| Rx (Max. audio/standby) |
1.2A / 0.9A |
Dimensions (W×H×D)
(Projections not included) |
Main unit |
167×58×225 mm (6.57×2.28×8.86 in) |
| Controller |
165×64×78.5 mm (6.5×2.52×3.09 in) |
| Weight (approx.) |
Main unit |
2.3 kg (5.1 lb) |
| Controller |
0.5 kg (1.1 lb) |
| *¹ Showing USA version. Varies according to version. Some frequency bands are not guaranteed. |
| II. TRANSMITTER |
Output Power
(at 13.8V DC) |
SSB/CW/RTTY/FM/DV |
HF/50MHz |
2–100W |
| 144MHz |
2–50W |
| 430/440MHz |
2–35W |
| AM |
HF/50MHz |
1–30W |
| Modulation System |
SSB |
Digital P.S.N. modulation |
| AM |
Digital low power modulation |
| FM |
Digital phase modulation |
| DV |
GMSK digital phase modulation |
| Spurious Emissions |
HF bands |
Less than –50dB |
| 50MHz |
Less than –63dB |
| 144/430/440MHz |
Less than –60dB |
| Carrier Suppression |
 |
More than 50dB |
| Unwanted Sideband |
 |
More than 50dB |
| III. RECEIVER |
| Intermediate Frequencies |
SSB/CW/AM/FM/RTTY/DV |
124.487 MHz, 455 kHz, 36 kHz |
| WFM |
134.732 MHz, 10.700 MHz |
Sensitivity
(Preamp ON: see footnote) |
SSB/CW
(BW=2.4kHz, 10dB S/N) |
1.8–29.9MHz |
0.15 μV |
| 50–54MHz |
0.12 μV |
| 144/430/440MHz |
0.11 μV |
| AM (BW=6kHz, 10dB S/N) |
0.5–1.8MHz |
13 μV |
| 1.8–29.9MHz |
2 μV |
| 50–54MHz |
1 μV |
| 144/430/440MHz |
1 μV |
| FM (BW=15kHz, 12dB SINAD) |
28–29.7MHz |
0.5 μV |
| 50–54MHz |
0.25 μV |
| 144/430/440MHz |
0.18 μV |
| Selectivity |
SSB (BW=2.4kHz, sharp) |
More than 2.4kHz / –6dB
Less than 3.4kHz / –40dB |
| CW (BW=500Hz, sharp) |
More than 500Hz / –6dB
Less than 700Hz / –40dB |
| AM (BW=6kHz) |
More than 6.0kHz / –6dB
Less than 10kHz / –40dB |
| FM (BW=15kHz) |
More than 12kHz / –6dB
Less than 22kHz / –40dB |
| DV (12.5kHz spacing) |
More than –50dB |
| Spurious & Image Rejection Ratio |
HF/50MHz |
More than 70dB |
| 144/430/440MHz |
More than 65dB (except 1/2 IF through on 50MHz, IF through on 144MHz) |
| Audio Output Power |
(10% distortion, 8Ω load) |
More than 2.0W |
