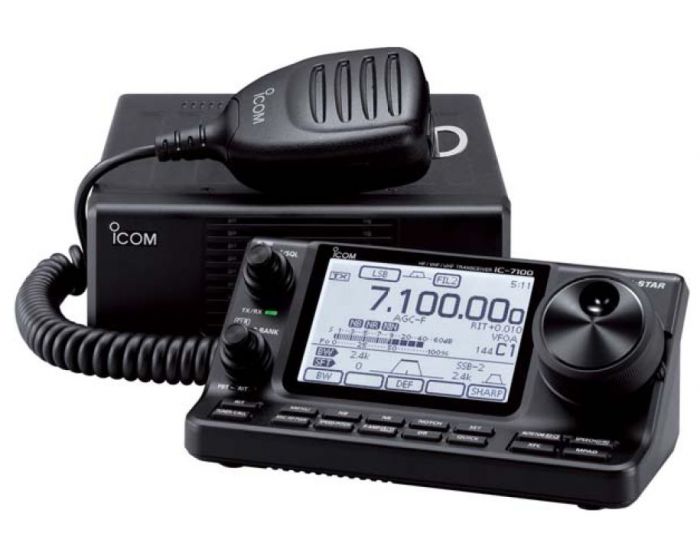

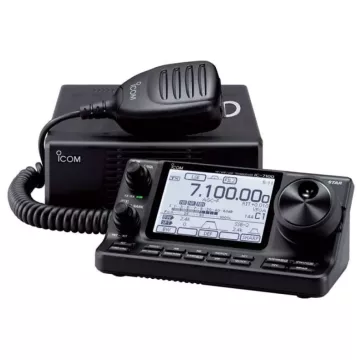

Icom IC-7100 Mobile Capable HF/VHF/UHF Transceiver
The Icom IC-7100 is a mobile capable HF/VHF/UHF transceiver that offers up to 100W of output power on HF/50MHZ, 50W on 144MHZ and 35W on 430/440 MHz, while drawing a max of 22A. The triple conversion superhetrodyne in the IC7100 receives from 0.030 - 199.99 and 400-470 MHz. The intuitive touch screen interface makes operating the Icom IC-7100 a breeze and the large dot-matrix LCD display is positioned for easy view and operation. The controller head is compact in size, making it ideal for limited vehicle or desktop space and even works if you're wearing gloves. The control head also features a built in speaker that provides loud, clear audio as well as jacks for external speaker/headphones, a keyer and microphone. Optional RS-BA1 remote control software allows you to operate the IC-7100 from a remote PC over the internet or your local home network. A built-in SD memory card slot allows you to store various contents including voice memory, memory channels, D-STAR repeater memories and other personal settings. Mobile mounting is easy with the optional MBF-1 suction cup case and the MBA-1 controller bracket, providing easy tilt and swivel adjustments. The high-performance 32-bit floating point IF DSP delivers rich digital signal processing features including digital IF filter, digital twin PBT, noise reduction, CW auto tune, etc. -- those digital features work on all bands from HF to VHF/UHF. The built-in RTTY decoder allows you to instantly read a RTTY message on the display without the need for an external TNC or PC. In the box with the Icom IC-7100 you will find a HM-198 hand microphone, DC Power Cable, Spare Fuses, 13-pin ACC Cable, Electronic Key Plug, Microphone Clip/Hanger, Instruction Manual and Warranty Card.
Be sure to purchase your Icom IC-7100 at GigaParts today!
UPC Code: 731797016638
In 1995, almost two decades ago, Icom changed the way hams think about mobile HF communication with their introduction of the IC-706. Since that time, the Icom Mobile HF radios have been the Performance HF mobile radio of choice. Now, at the 2012 Tokyo Hamfair, Icom has once again changed mobile HF communications with the introduction of the IC-7100.
Touch Screen Control Portal
An amateur radio first! The radio control head features a large, multi-function, "touch screen"' DOT-Matrix LCD display that is positioned for easy view and operation. This is an important feature as the controller display not only provides information, but is your control portal to the IC-7100's feature settings and menus.
Breaking the concept that a radio panel should be flat, the IC-7100's control head is designed for an optimal view angle for the LCD as well as the spacing for large fingers, and plenty of room to have a large internal speaker along with a CW keyjack, phone/speaker, microphone, and control cable.
The IC-7100 provides D-STAR DV mode digital voice and low speed data communications. Add a third party GPS* and search the internal database based on your location. Additionally, the IC-7100 incorporates DR mode, which allows the user to control their D-STAR routing based on where they are talking “FROM” and where they want to talk "TO", including Reflector controls.
*External GPS receiver or manual data input required.
IF DSP features
The latest 32-bit floating point DSP supports many digital processing features such as digital IF filter, twin PBT, manual notch filters. Of course, those highgrade digital processing features work on all ham bands, from HF to the 70cm band.
- Built-in SD Card Slot for voice storage and data cloning
- Dual DSP chips deliver versatile digital processing performance
- Built-in RTTY demodulator and decoder
- Multi-function meter
- SWR graphic display
- DSP controller RF speech compressor
- Total of 505 memory channels
- Voice recording and playback functions
- 70–70.5MHz coverage, 50W output power (for Europe versions only, varies according to version.)
- ± 0.5ppm high frequency stability
- Optional RS-BA1 IP control remote control software
Icom IC-7100 Transceiver
HM-198 Hand Mic
Ferrite EMI Filter
ACC Cable (13-pin)
DC Power Cable
Electronic Key Plug
CD w/user manual
Icom America will no longer be including CD Manuals in the box for certain
mainframes. Users can still access and download the manuals on Icom
Japan’s website at the following web address:
Below is the list of radios and CD manual removal dates:
- IC-7610 as of June 2020
- IC-7851 as of June 2020
- IC-7300: as of July 2020
- IC-7100: as of July 2020
- ID-5100: as of August 2020
