Open Box NANOVNA-H4 10KHz to 1.5GHz Vector Network Analyzer

Open Box NANOVNA-H4 10KHz to 1.5GHz Vector Network Analyzer

Note: Since this is an open-source product, support is not directly offered by GigaParts. Please refer to the many resources available online.

NanoVNA-H4 10KHz to 1.5GHz Vector Network Analyzer with 4" Touch-Screen Display and 1950mAh Battery - 1 Year Warranty

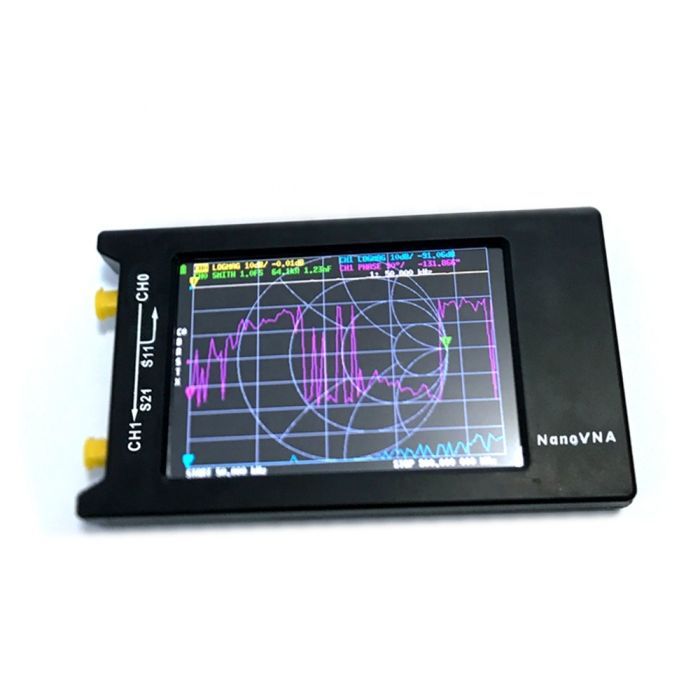

The NanoVNA H4 is an open-source handheld 10KHz to 1.5GHz Vector Network Analyzer with Touch Screen Display.

• Measurement frequency: 10KHz - 1.5GHz
• RF output: 0dbm
• Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB (0.9G-1.5GHz))
• *There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
• Port SWR: < 1.1
• Display: 3.95 inch TFT (320 x 480)
• USB interface: USB type-C communication mode: CDC (serial)
• Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
• Number of scanning points: 101 (fixed)
• Display Tracking: 4
• Marking: 4
• Setting Save: 5
• Frequency Tolerance: <2.5ppm
• Frequency Stability: <0.5ppm
