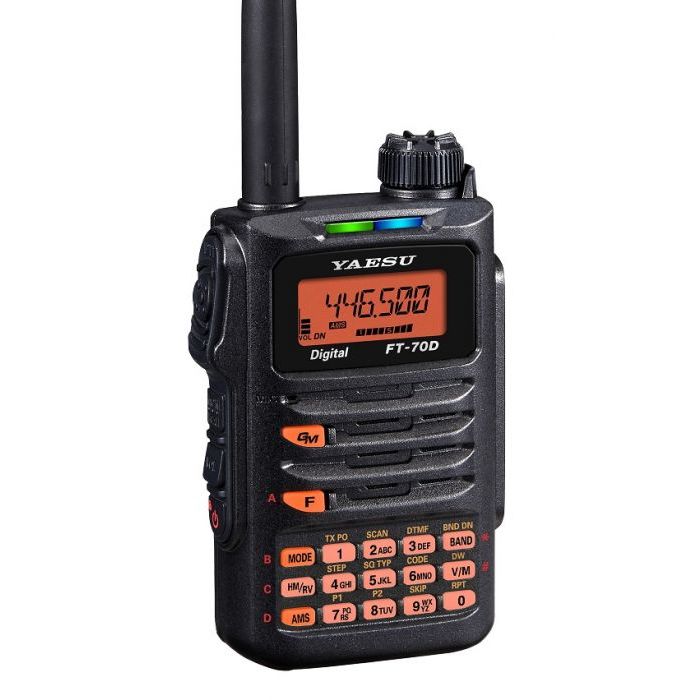

Refurbished Yaesu FT-70DR Handheld Radio S/N8M220862
Yaesu FT-70DR C4FM FDMA / FM 144/430 MHz DUAL BAND 5W Handheld Transceiver
The FT-70DR is a compact System Fusion transceiver providing both conventional analog FM operation and the advanced C4FM Digital mode.
The FT-70DR provides up to 5W of reliable RF power, and its large Front Speaker delivers 700mW of Loud Audio Output. Because C4FM has better BER (Bit Error Rate) characteristics than other digital modulations, the user can expect exceptional audio quality.
The digital FT-70DR includes Automatic Mode Select (AMS) function. AMS detects the operating mode of the received signal as C4FM Digital or analog FM, and then automatically and instantly switches the receiver to the appropriate mode. Users do not need to manually change between modes.
The multi-colored LED Mode-Indicator displayed on the front allows the operator to easily see what mode the FT-70DR is in at any given moment. LED Mode-Indicator clearly and visibly shows the transmit/ receive mode by changing its color so that the operating mode of the transceiver is easily recognized at a glance.
One of the other distinguishing features of the FT-70DR is Digital Group Monitor (GM) with DG-ID and DP-ID. DGID (Digital Group Identification) and DP-ID (Digital Personal Identification) are useful features now included in the FT-70DR, to simplify the GM operation. Simply put, the transceivers selecting the same DG-ID or DP-ID can communicate with each other. Between 00 and 99 DG-ID and DP-ID are selectable which provides loads of flexibility so that users can enjoy group communication with friends in GM mode in accordance to their individual operational needs.
Other included standard features and functions are;
- IP54 Rating (Dust/ Water Protection) construction
- Wide band receive coverage of 108 - 579.995MHz
- Versatile Scanning Capabilities such as Programmable VFO Scan
- Memory Scan
- Priority Channel Scan
- External DC Jack for DC Supply Operation and to Charge the Battery
- Mini USB port for convenient programming and software updates
- CTCSS/ DCS Operation
- Automatic Power Off (AFO) feature
- RF Squelch
- Transmitter Time Out Timer (TOT)
- Busy Channel Lock-Out (BCLO)
